Redundant Pedal Switch Connector
Redundant Pedal Switch Connector

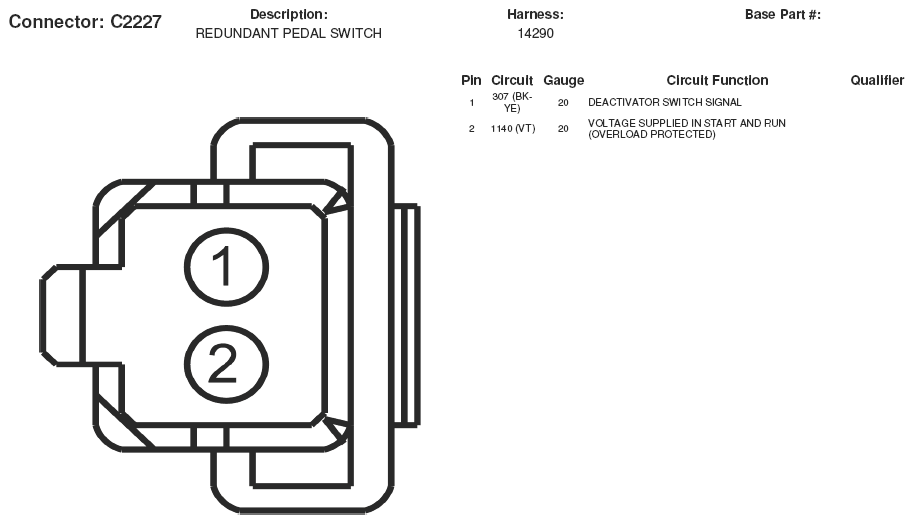

Fig 1: Redundant Pedal Switch Connector End View (C2227)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
