Roof Opening Panel Module Connector

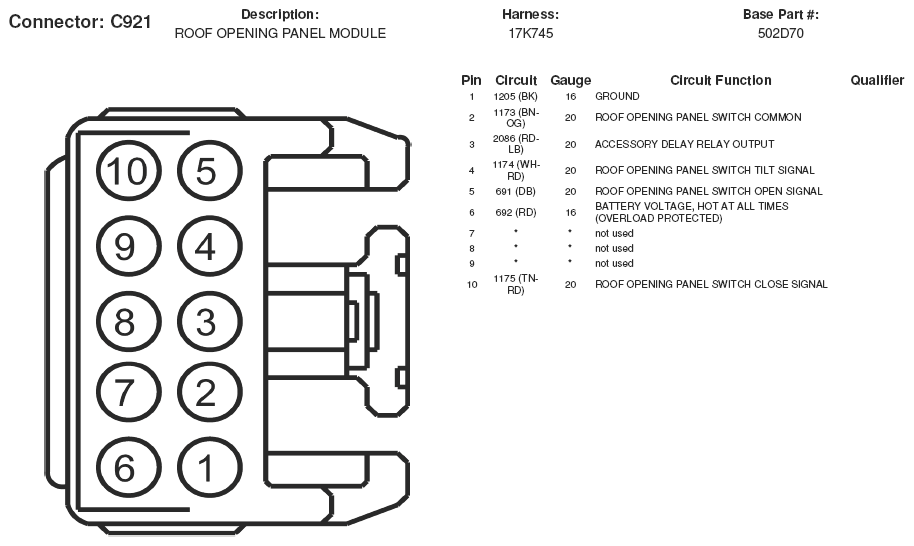

Fig 1: Roof Opening Panel Module Connector End View (C921)
G05168828Courtesy of FORD MOTOR CO.
