Safety Canopy Module Connector

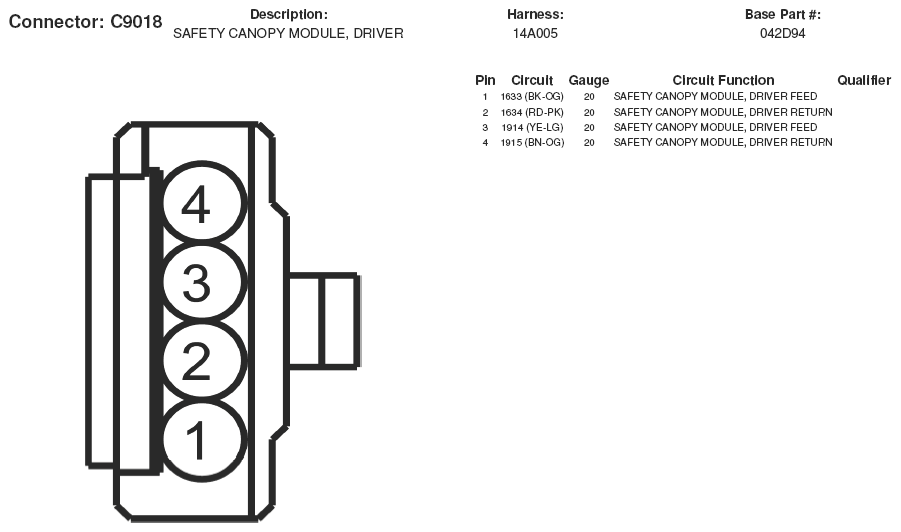

Fig 1: Safety Canopy Module Connector End View (C9018)

Courtesy of FORD MOTOR CO.

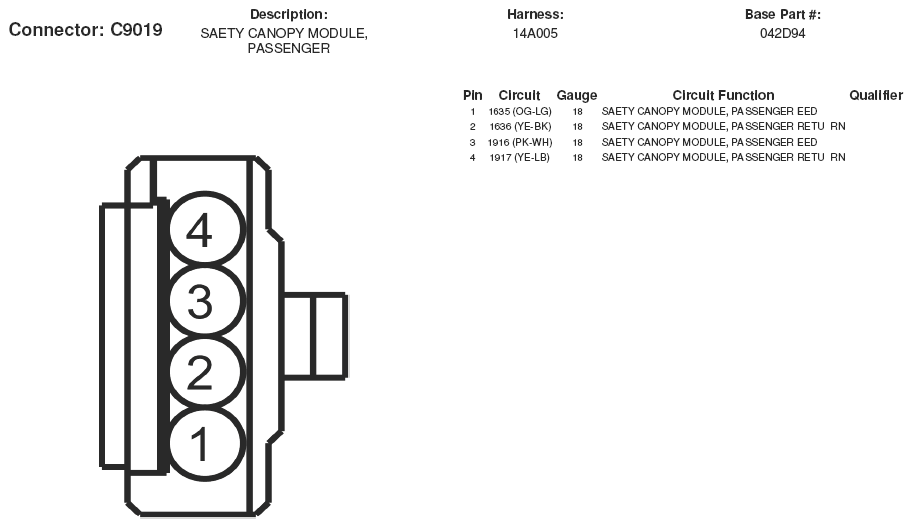

Fig 2: Safety Canopy Module Connector End View (C9019)

Courtesy of FORD MOTOR CO.

Fig 3: Safety Canopy Module Connector End View (C9031)

Courtesy of FORD MOTOR CO.

Fig 4: Safety Canopy Module Connector End View (C9032)

Courtesy of FORD MOTOR CO.
