Smart Junction Box Connector

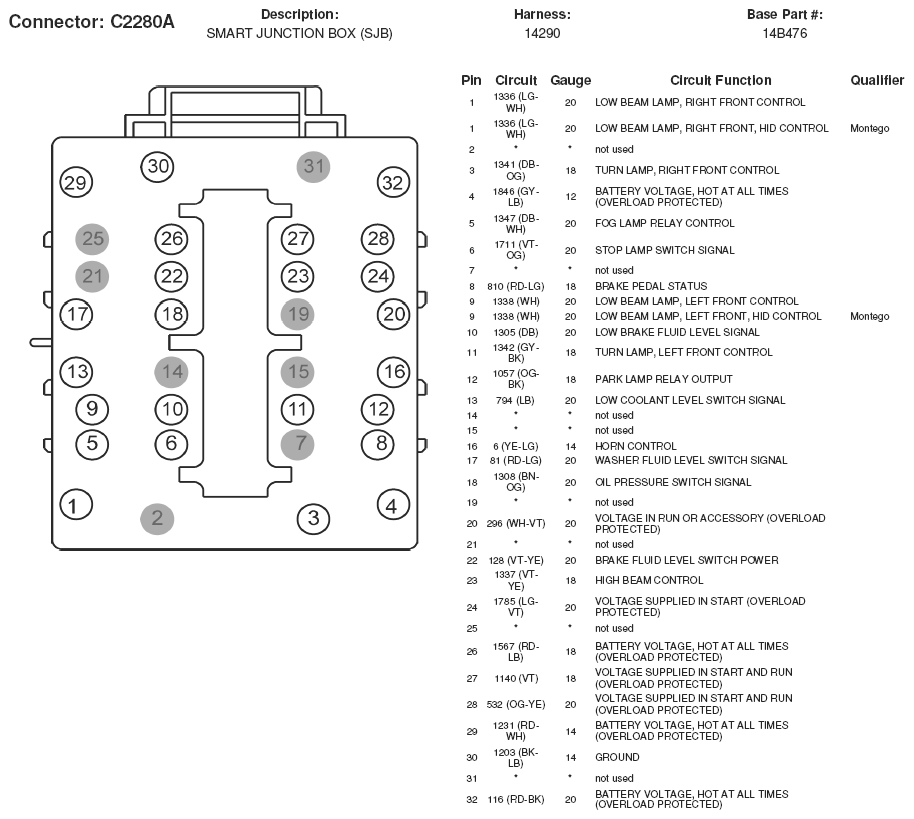

Fig 1: Smart Junction Box Connector End View (C2280A)

Courtesy of FORD MOTOR CO.

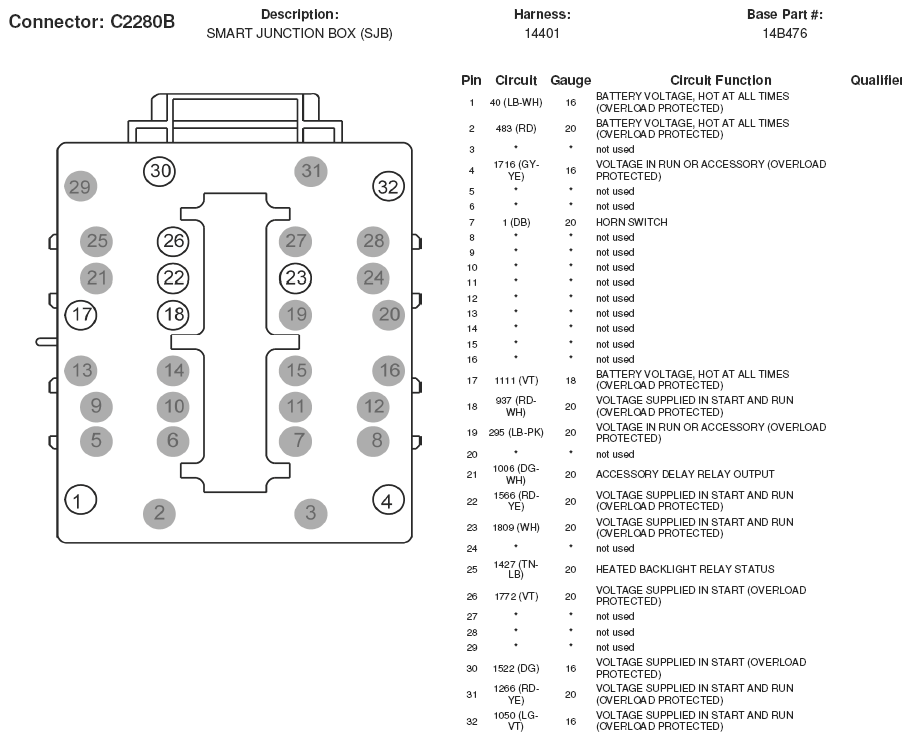

Fig 2: Smart Junction Box Connector End View (C2280B)

Courtesy of FORD MOTOR CO.

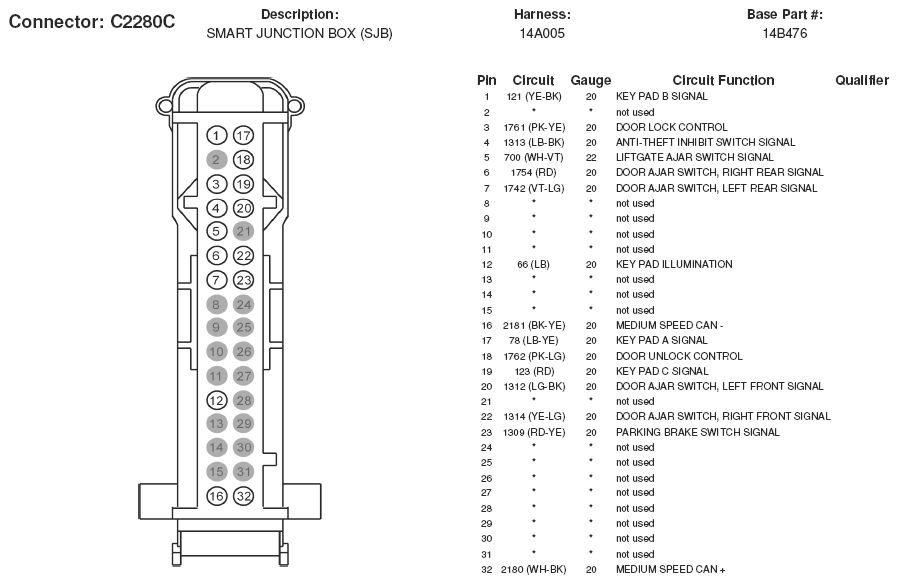

Fig 3: Smart Junction Box Connector End View (C2280C)

Courtesy of FORD MOTOR CO.

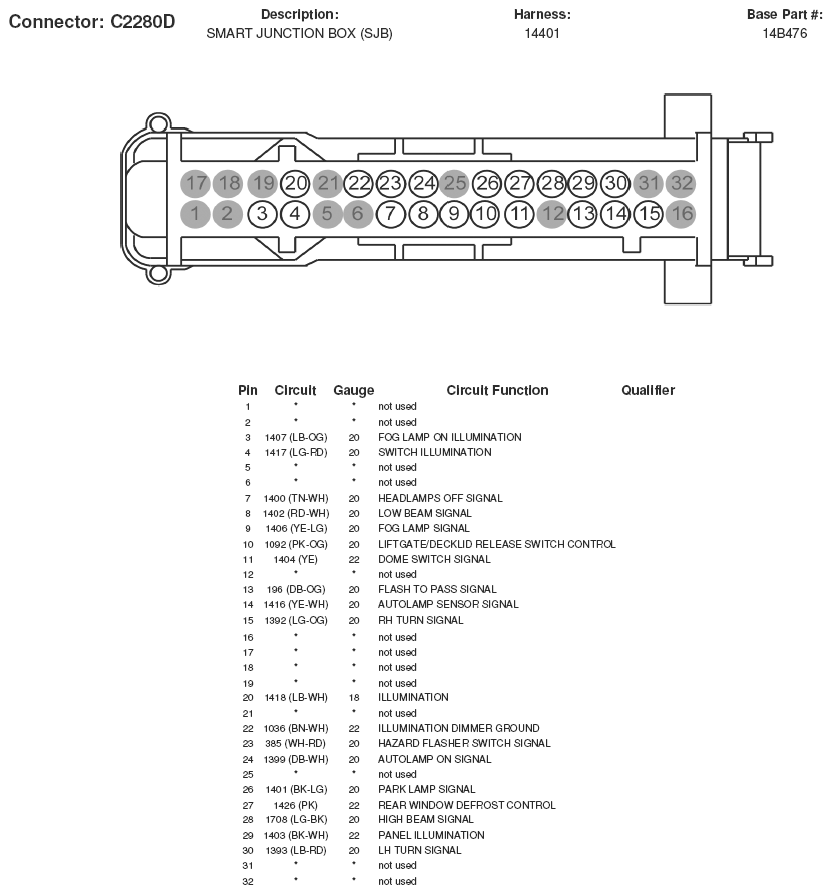

Fig 4: Smart Junction Box Connector End View (C2280D)

Courtesy of FORD MOTOR CO.

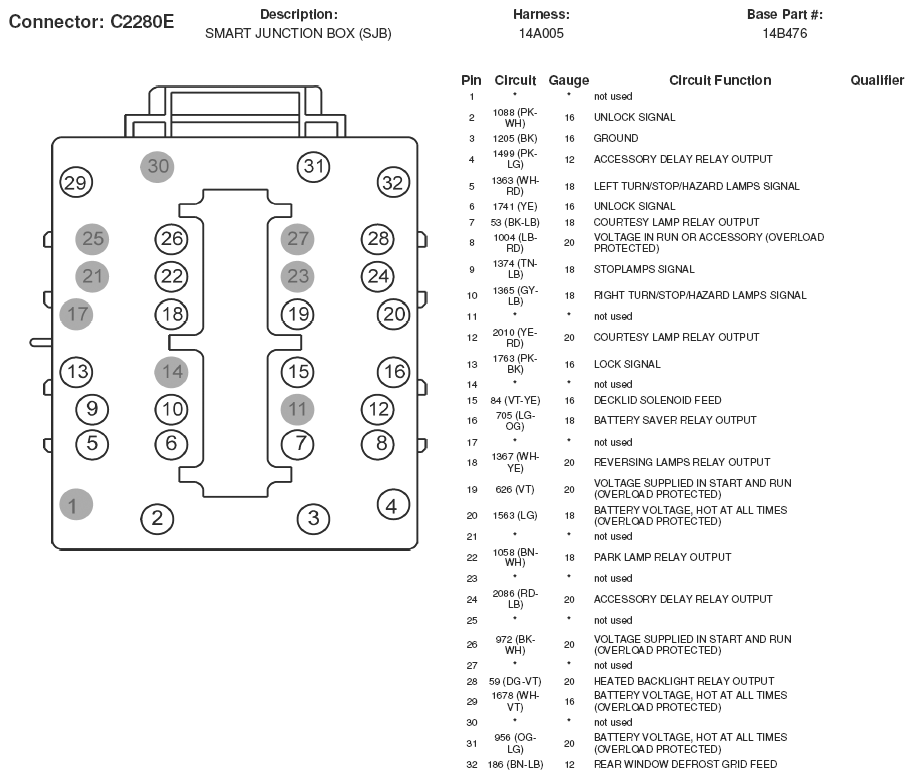

Fig 5: Smart Junction Box Connector End View (C2280E)

Courtesy of FORD MOTOR CO.

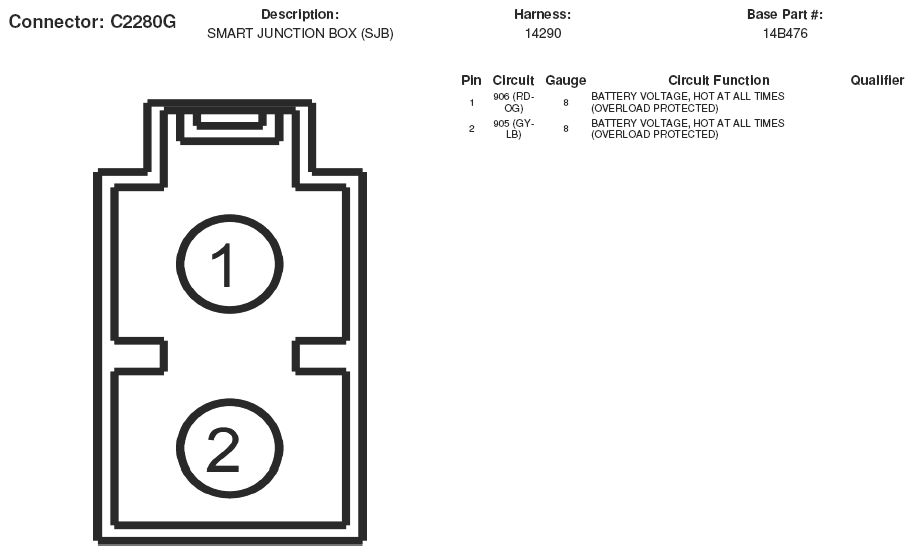

Fig 6: Smart Junction Box Connector End View (C2280G)

Courtesy of FORD MOTOR CO.
