Wheel Speed Sensor Connectors

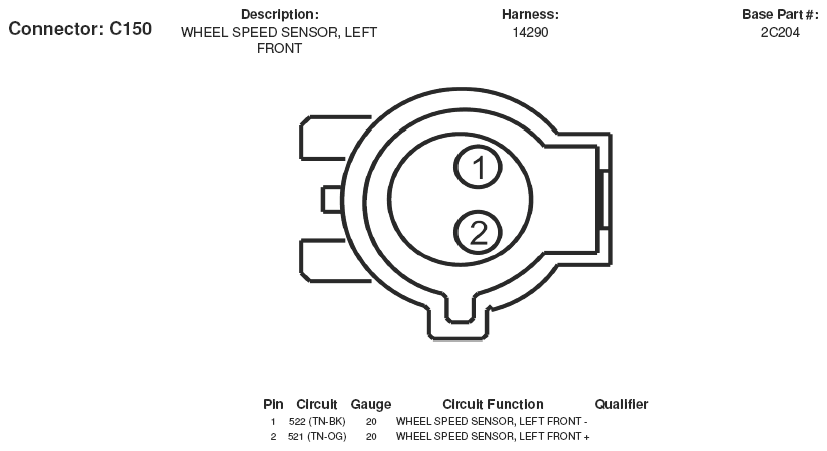

Fig 1: Wheel Speed Sensor Connector End View (C150)

Courtesy of FORD MOTOR CO.

Fig 2: Wheel Speed Sensor Connector End View (C160)

Courtesy of FORD MOTOR CO.

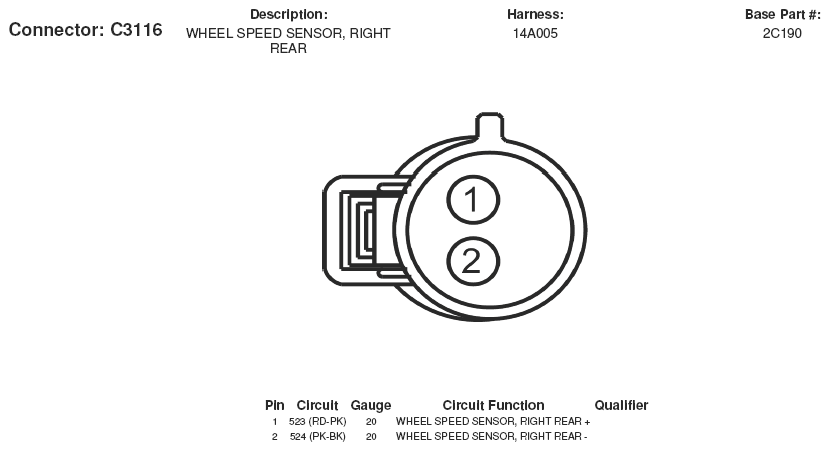

Fig 3: Wheel Speed Sensor Connector End View (C3116)

Courtesy of FORD MOTOR CO.

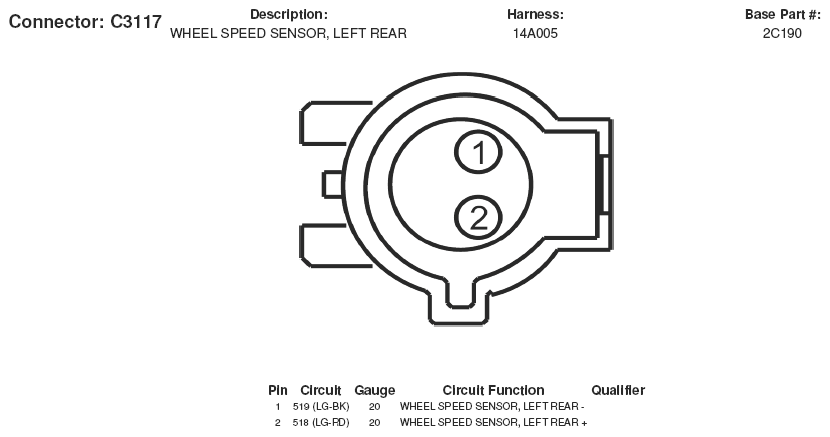

Fig 4: Wheel Speed Sensor Connector End View (C3117)

Courtesy of FORD MOTOR CO.
