Windshield Washer Pump Motor Connector
Windshield Washer Pump Motor Connector

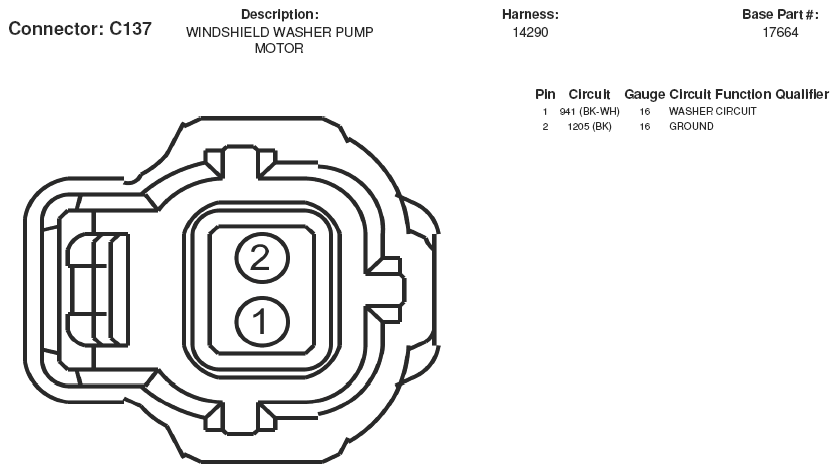

Fig 1: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
