Bypass Tube: Notes

Fig 1: Exploded View Of Bypass Tube Hoses With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8A507	Thermostat housing-to-bypass tube hose clamp (part of 8A507)
2	8A507	Thermostat housing-to-bypass tube hose
3	W500214	Thermostat housing bolt (2 required)
4	8592	Thermostat housing

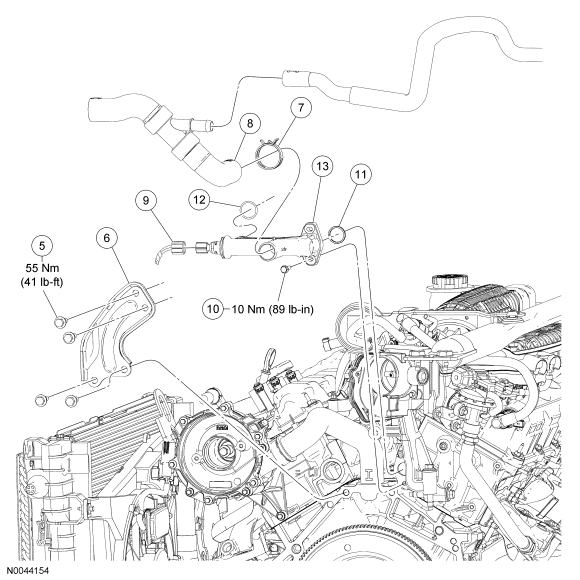

Fig 2: Exploded View Of Roll Restrictor & Bypass Tube With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	W506433	Roll restrictor bracket bolt (4 required)
6	6G087	Roll restrictor bracket
7	8A507	Bypass tube hose clamp (part of 8A507)
8	8A507	Bypass tube hose
9	14A624	Bypass tube electrical connector
10	W701669	Bypass tube bolt (2 required)
11	391522S	Bypass tube gasket
12	8255	Bypass tube O-ring seal
