Brake Pedal Position Switch Connector
Brake Pedal Position Switch Connector

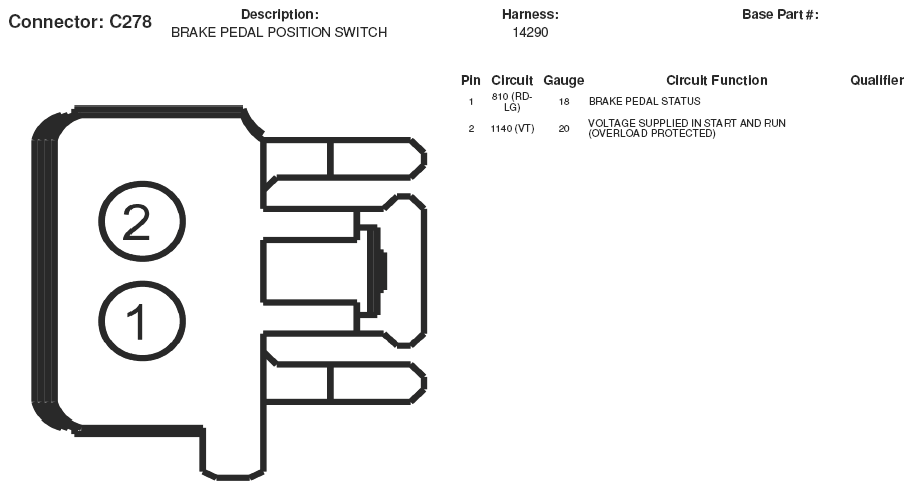

Fig 1: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
