Fuel Rail Pressure Sensor / Fuel Rail Temperature Sensor Connector
Fuel Rail Pressure Sensor / Fuel Rail Temperature Sensor Connector

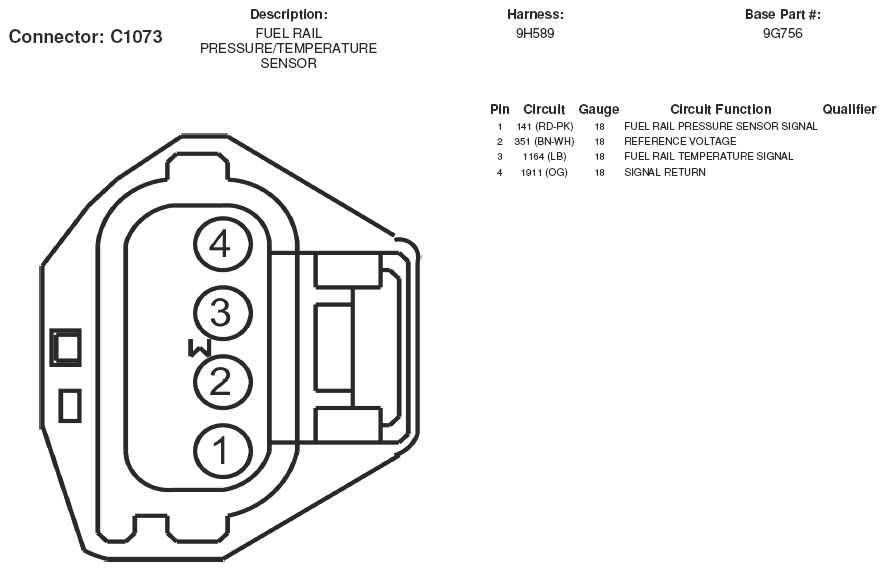

Fig 1: Fuel Rail Pressure Sensor / Fuel Rail Temperature Sensor Connector End View (C1073)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
