EGR System Module Connector

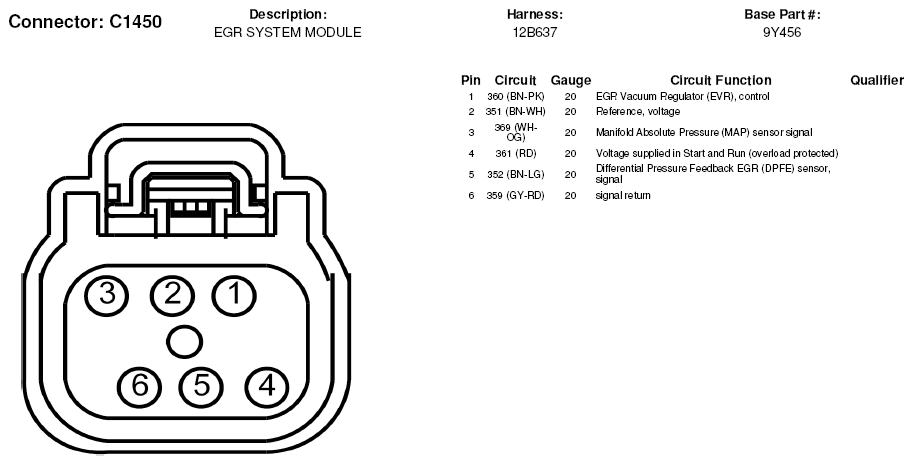

Fig 1: EGR System Module Connector End View (C1450)
G05181670Courtesy of FORD MOTOR CO.
