Powertrain Control Module Connectors

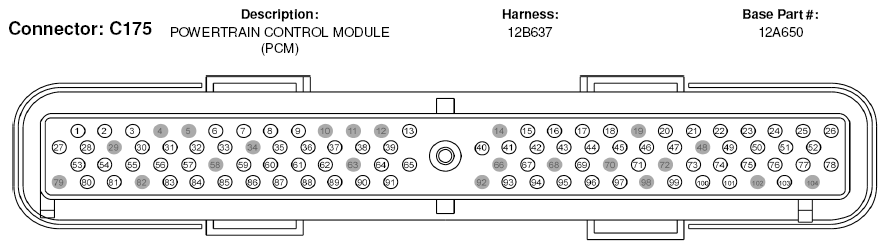

Fig 1: Powertrain Control Module Connector End View (C175) (1 Of 3)

Courtesy of FORD MOTOR CO.

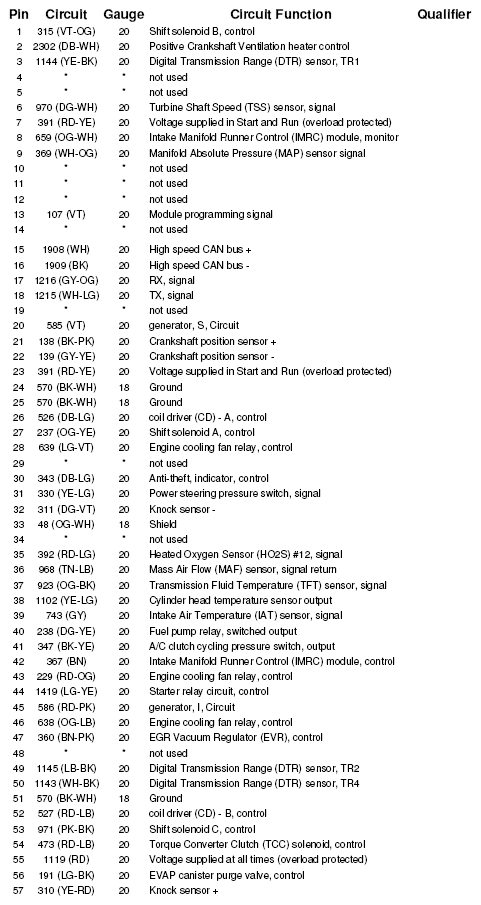

Fig 2: Powertrain Control Module Connector End View (C175) (2 Of 3)

Courtesy of FORD MOTOR CO.

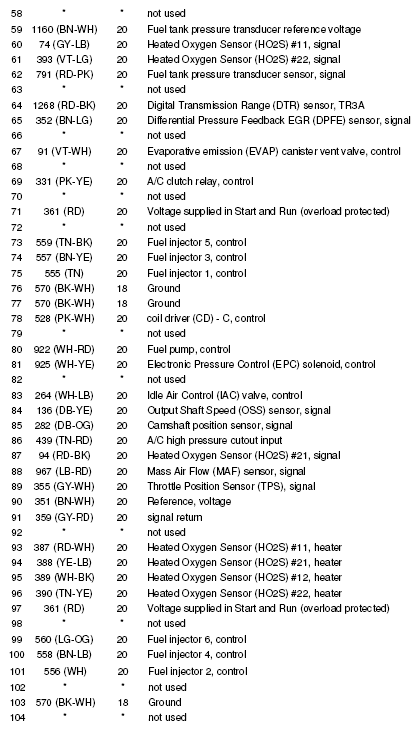

Fig 3: Powertrain Control Module Connector End View (C175) (3 Of 3)

Courtesy of FORD MOTOR CO.
