Smart Junction Box (SJB): Notes

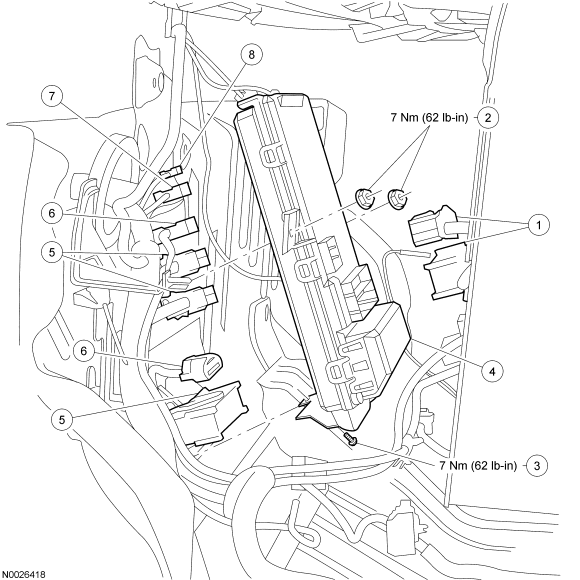

Fig 1: Exploded View Of Smart Junction Box SJB With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	SJB electrical connectors (part of 14401)
2	-	SJB nuts (2 required)
3	N621905	SJB bracket screw
4	15604	SJB
5	-	SJB electrical connectors (part of 14A005)
6	-	SJB electrical connectors (part of 14631)
7	-	SJB electrical connector (part 14335)
8	-	Remote keyless entry (RKE) antenna connector (part of 14335)
