Adjustable Pedal Switch Connector

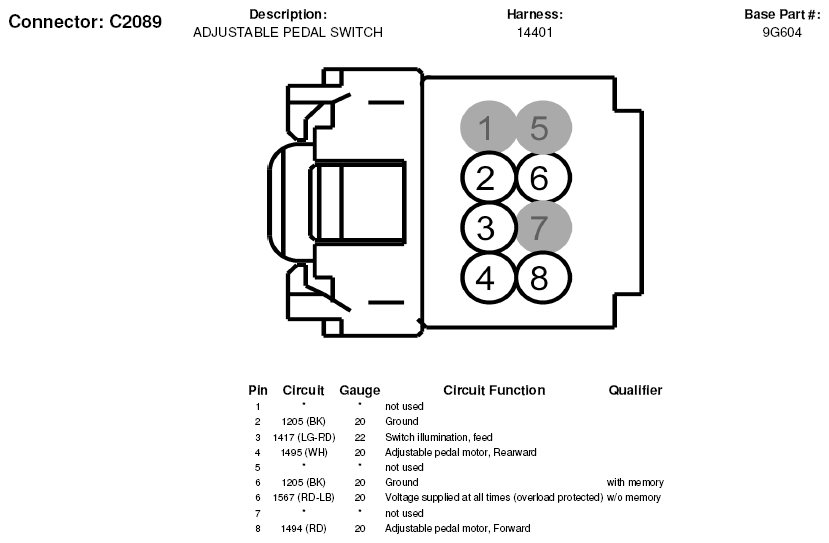

Fig 1: Adjustable Pedal Switch Connector End View (C2089)
G05181681Courtesy of FORD MOTOR CO.
