Anti-Lock Brake System Test Connector

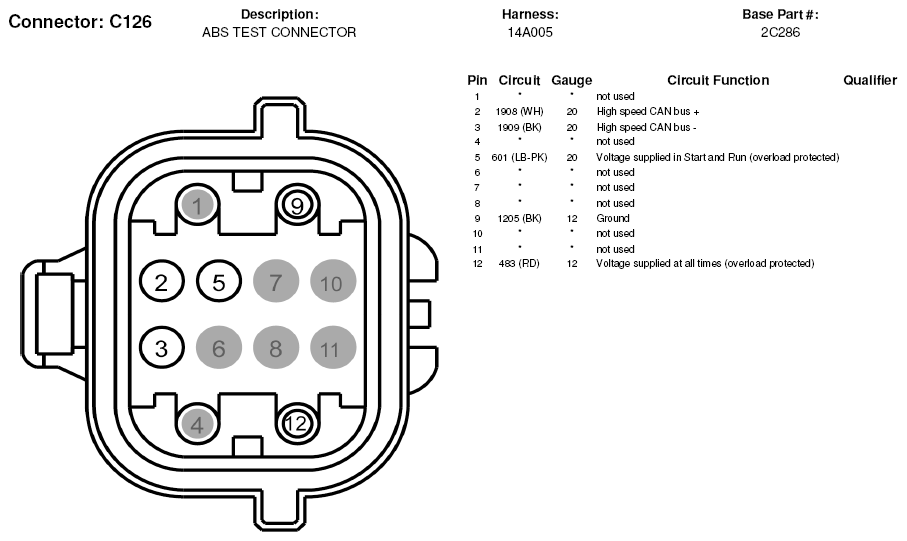

Fig 1: Anti-Lock Brake System Test Connector Connector End View (C126)
G05181449Courtesy of FORD MOTOR CO.
