Anti-Theft Hood Switch Connector
Anti-Theft Hood Switch Connector

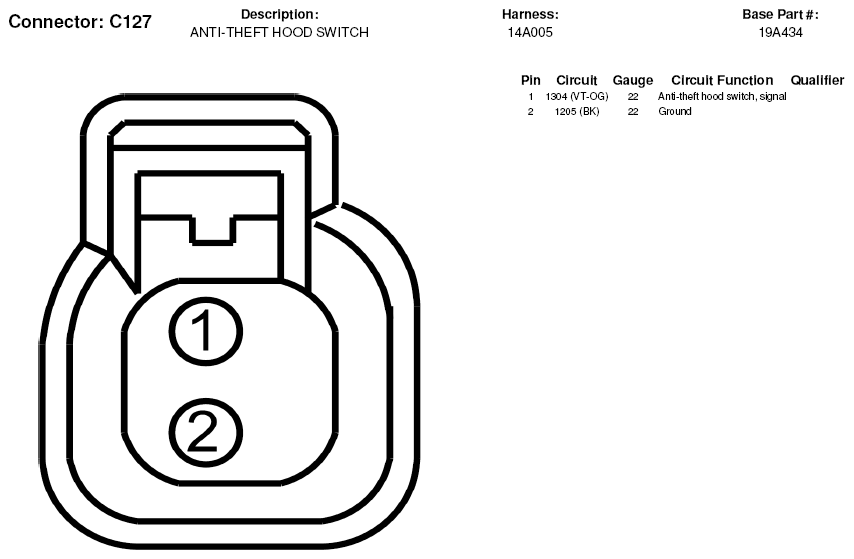

Fig 1: Anti-Theft Hood Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
