Climate Control Assembly Connectors

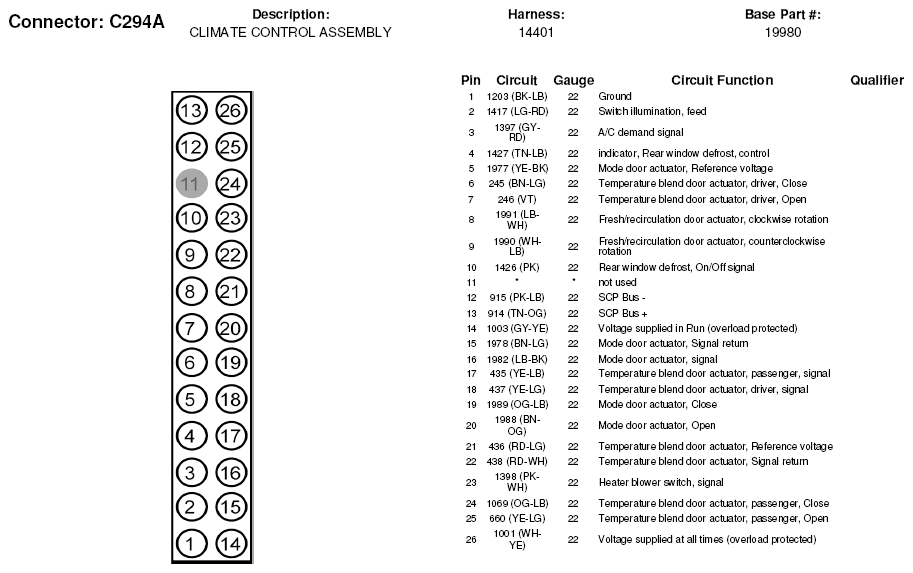

Fig 1: Climate Control Assembly Connector End View (C294A)
G05181526Courtesy of FORD MOTOR CO.

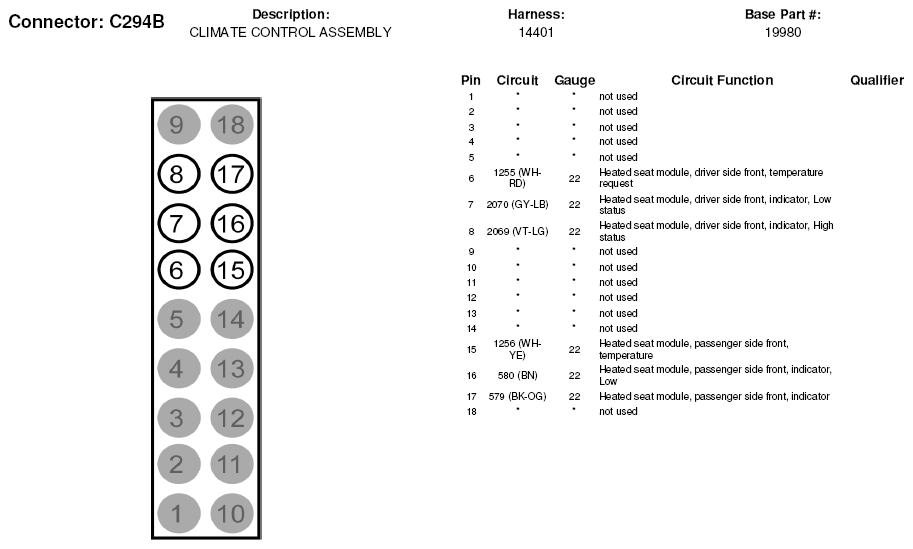

Fig 2: Climate Control Assembly Connector End View (C294B)
G05181527Courtesy of FORD MOTOR CO.

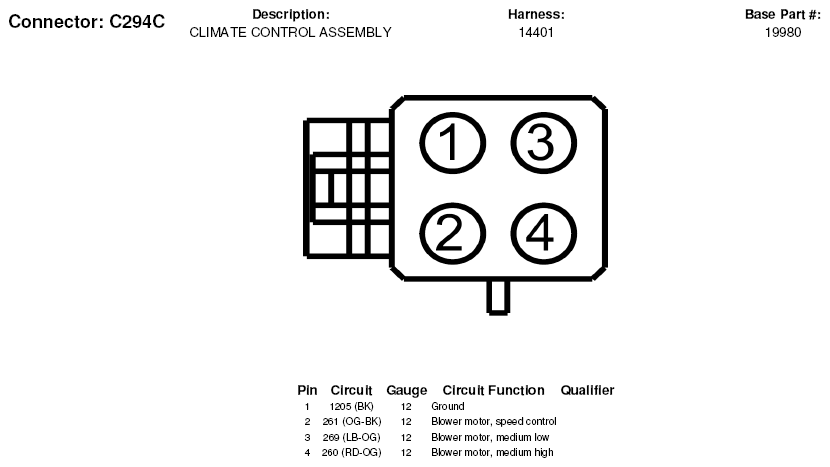

Fig 3: Climate Control Assembly Connector End View (C294C)
G05181528Courtesy of FORD MOTOR CO.
