Clock Connector
Clock Connector

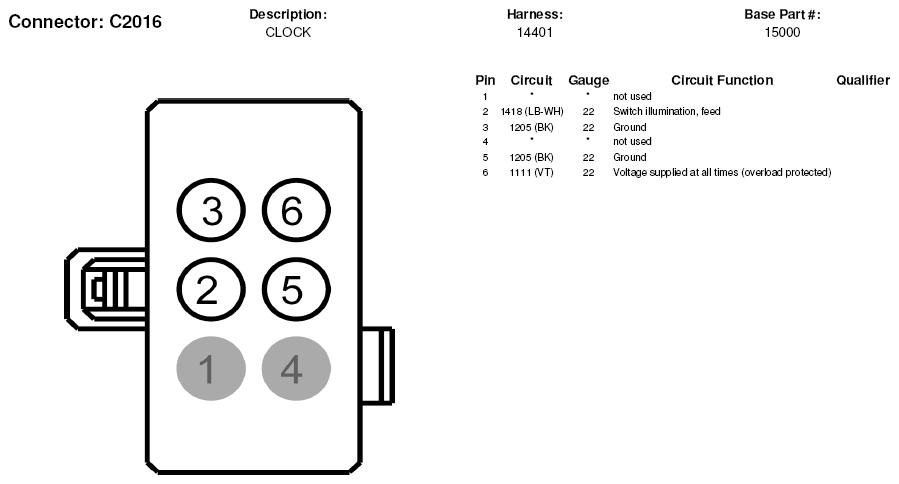

Fig 1: Clock Connector End View (C2016)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
