Clockspring Connectors

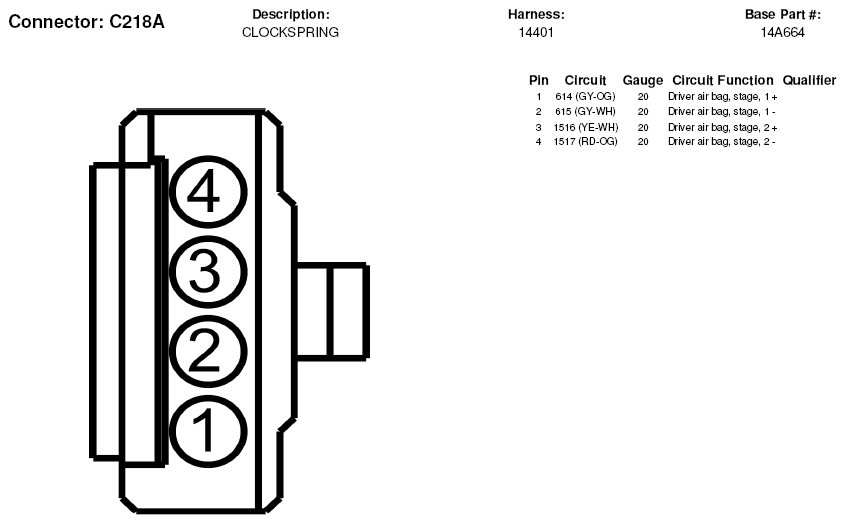

Fig 1: Clockspring Connector End View (C218A)
G05181502Courtesy of FORD MOTOR CO.

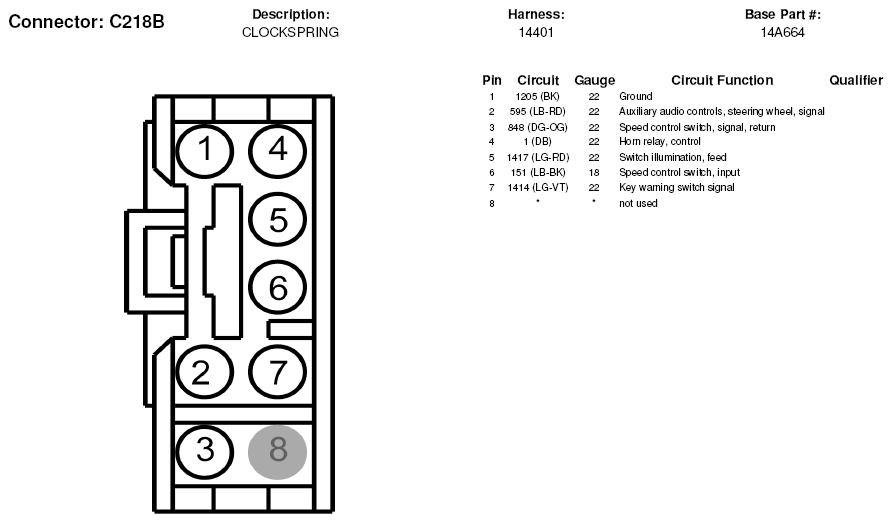

Fig 2: Clockspring Connector End View (C218B)
G05181503Courtesy of FORD MOTOR CO.
