Driver Memory Seat Front Connector

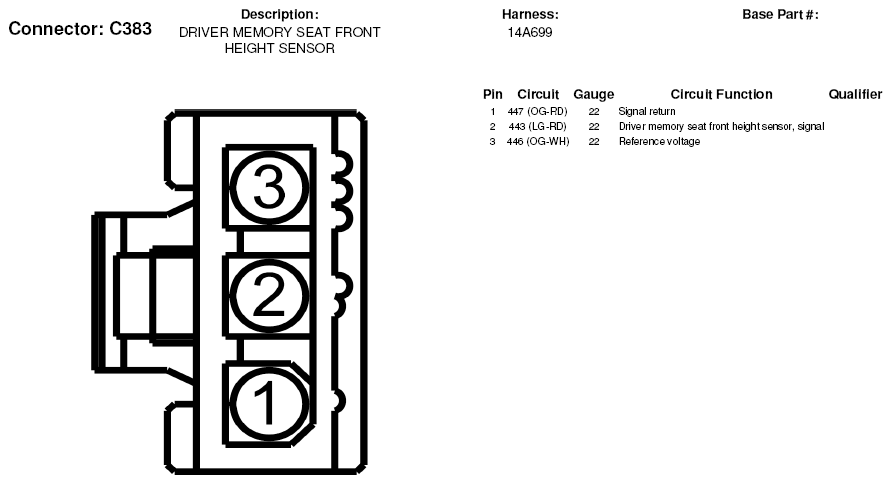

Fig 1: Driver Memory Seat Front Connector End View (C383)
G05181559Courtesy of FORD MOTOR CO.
