Driver Memory Seat Horizontal Connector
Driver Memory Seat Horizontal Connector

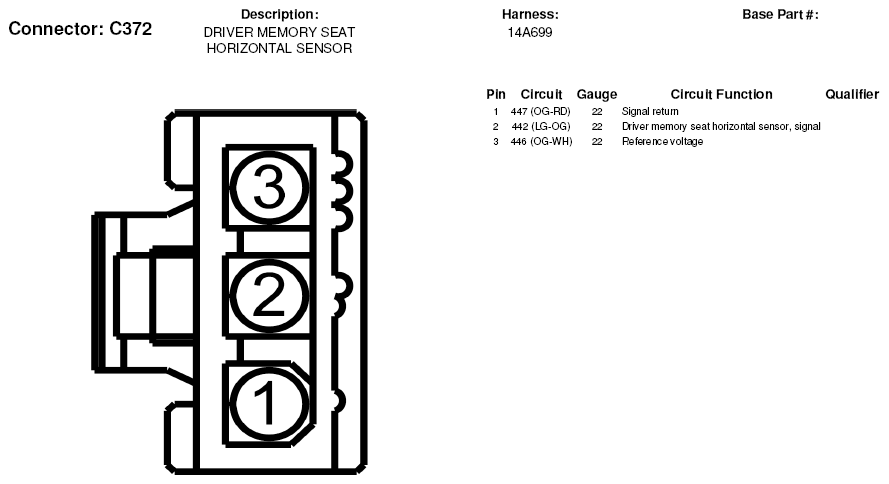

Fig 1: Driver Memory Seat Horizontal Connector End View (C372)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
