HVAC Module DATC Connector

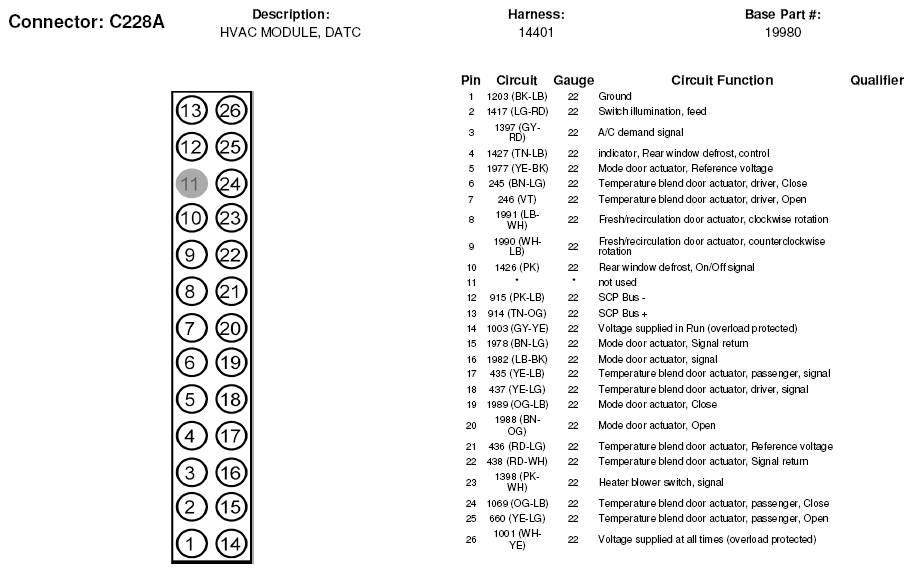

Fig 1: HVAC Module DATC Connector End View (C228A)
G05181508Courtesy of FORD MOTOR CO.

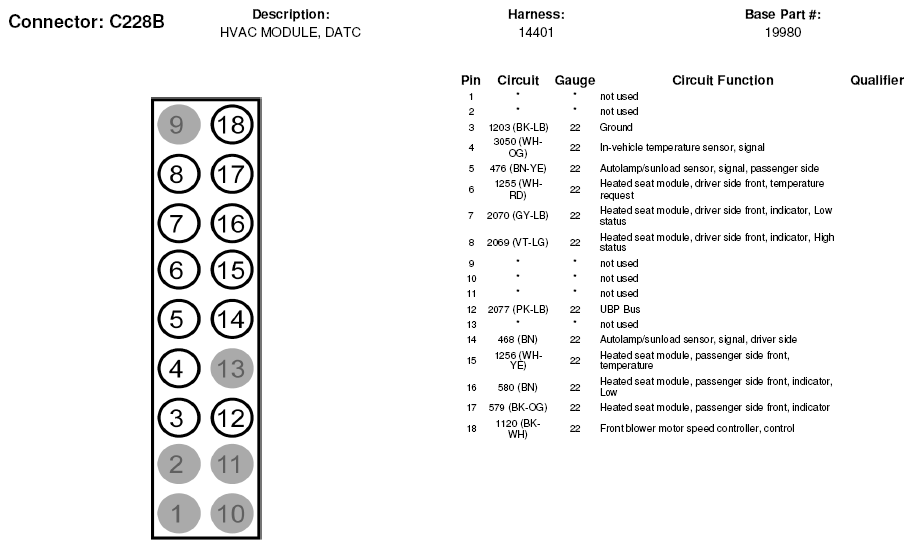

Fig 2: HVAC Module DATC Connector End View (C228B)
G05181509Courtesy of FORD MOTOR CO.
