Heated Seat Module Connectors

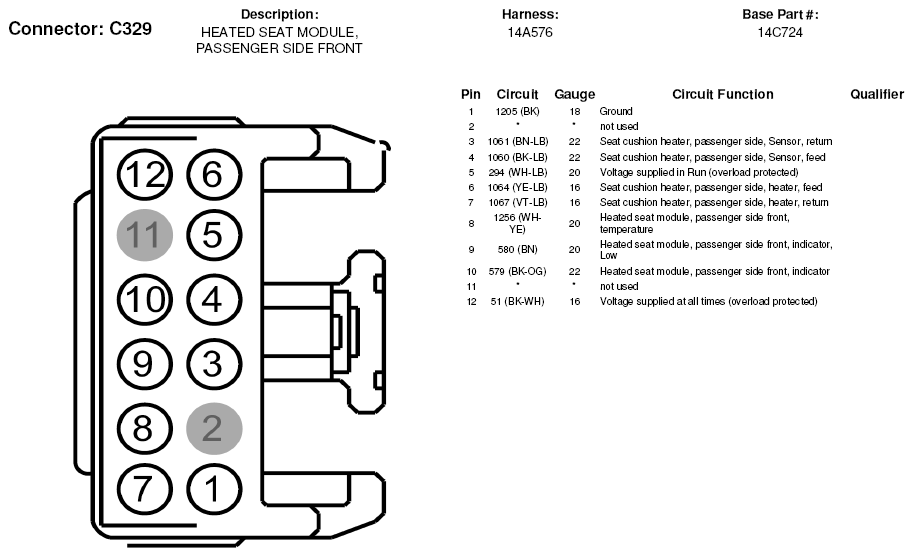

Fig 1: Heated Seat Module Connector End View (C329)
G05181540Courtesy of FORD MOTOR CO.

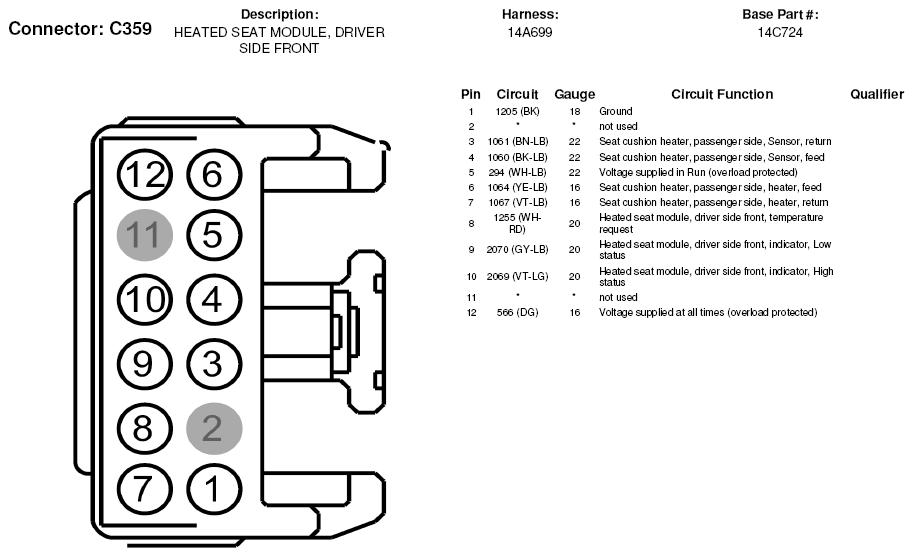

Fig 2: Heated Seat Module Connector End View (C359)
G05181552Courtesy of FORD MOTOR CO.
