In-Vehicle Temperature Sensor Connector

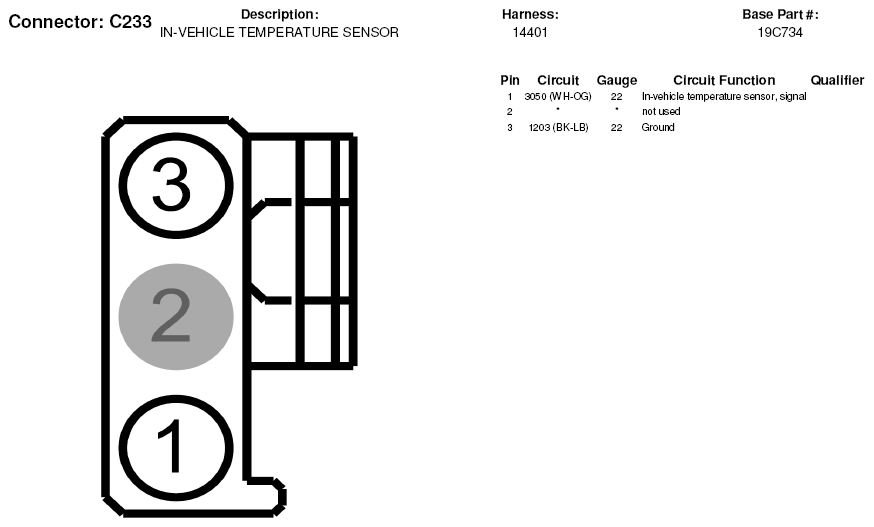

Fig 1: In-Vehicle Temperature Sensor Connector End View (C233)
G05181510Courtesy of FORD MOTOR CO.
