Joint Connector

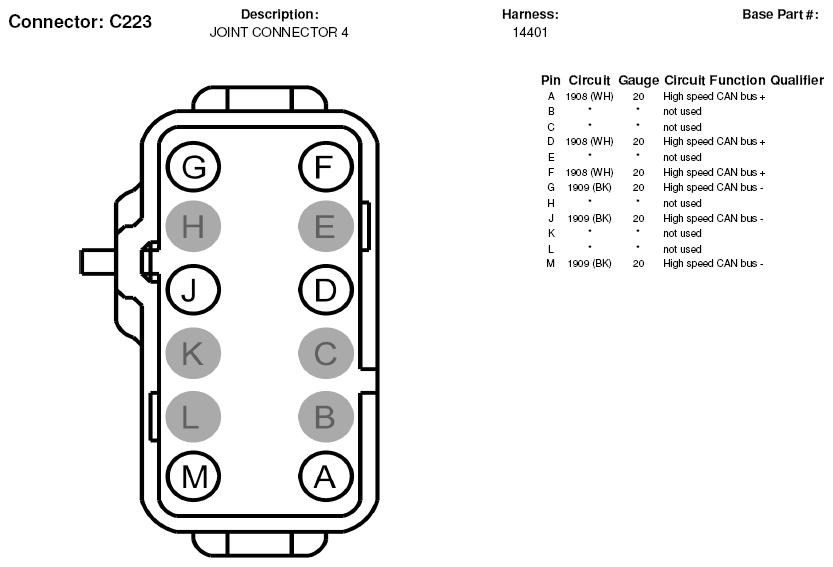

Fig 1: Joint Connector 4 Connector End View (C223)
G05181506Courtesy of FORD MOTOR CO.

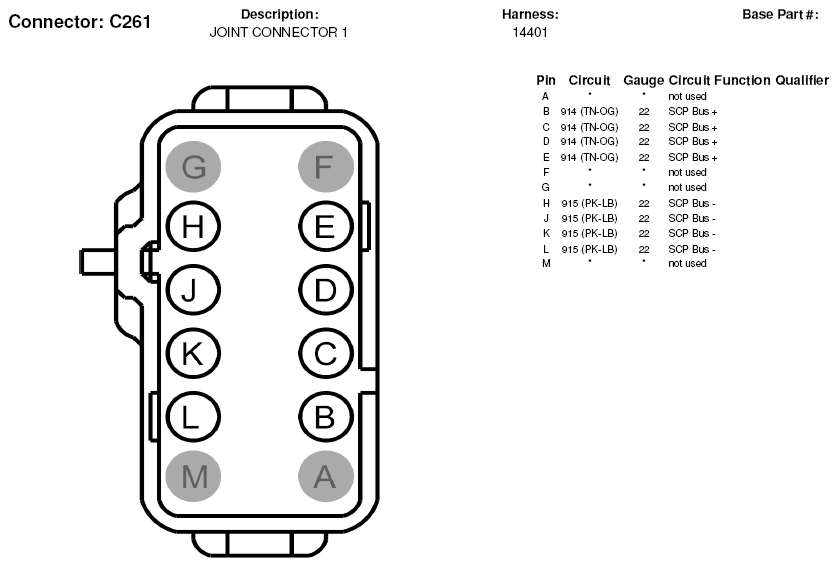

Fig 2: Joint Connector 1 Connector End View (C261)
G05181519Courtesy of FORD MOTOR CO.

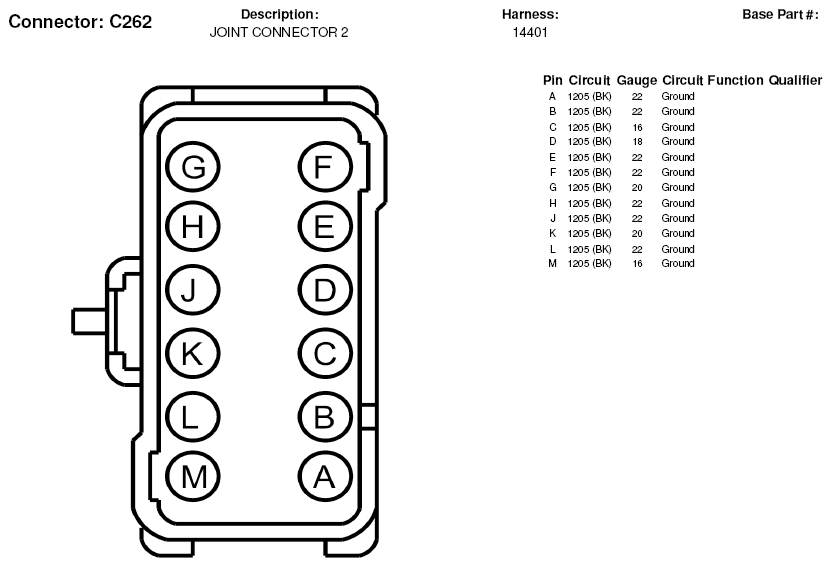

Fig 3: Joint Connector 2 Connector End View (C262)
G05181520Courtesy of FORD MOTOR CO.

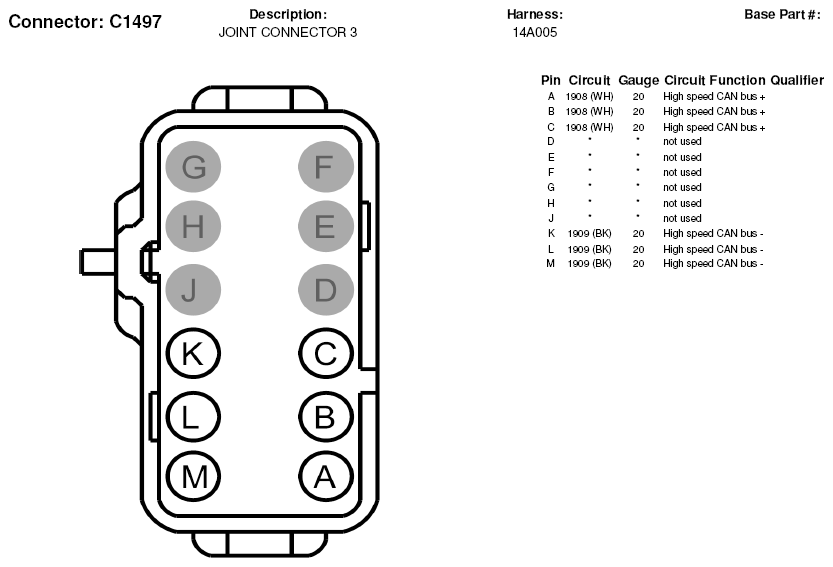

Fig 4: Joint Connector 3 Connector End View (C1497)
G05181671Courtesy of FORD MOTOR CO.
