Liftgate Drive Motor Assembly Connector

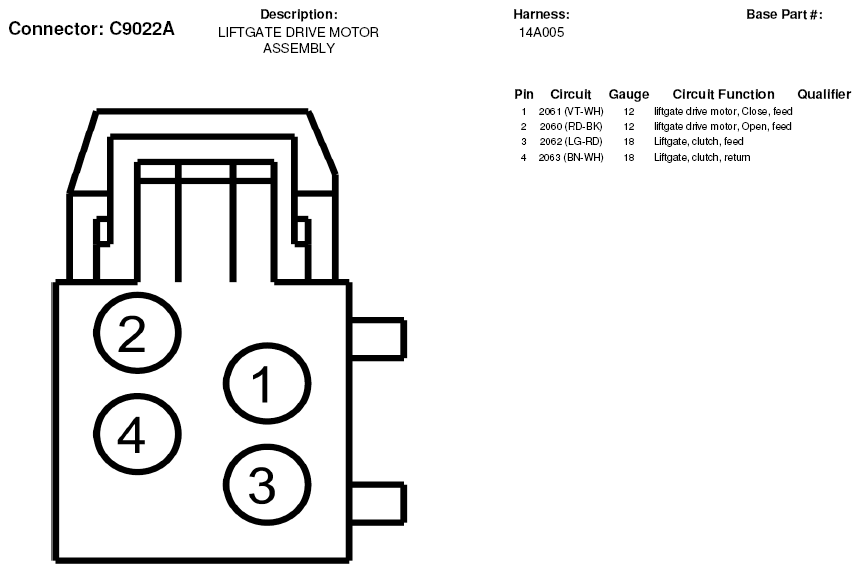

Fig 1: Liftgate Drive Motor Assembly Connector End View (C9022A)

Courtesy of FORD MOTOR CO.

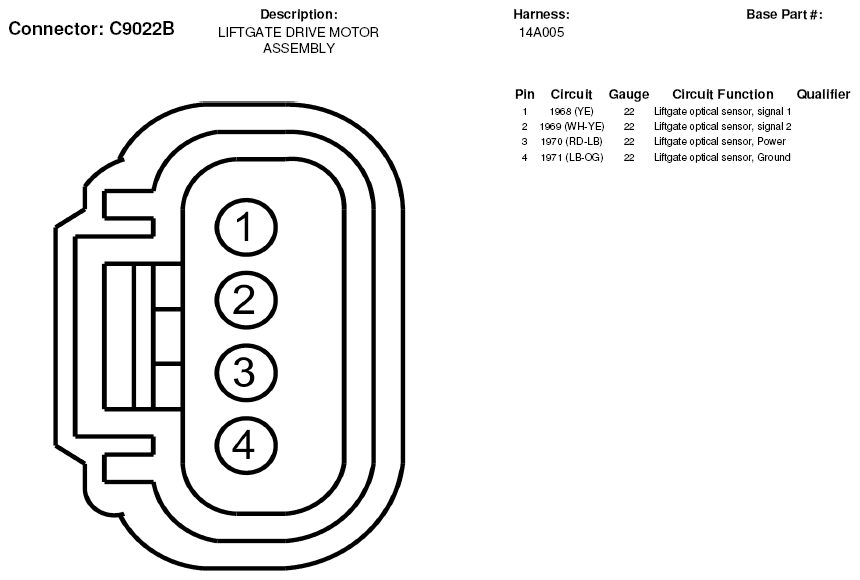

Fig 2: Liftgate Drive Motor Assembly Connector End View (C9022B)

Courtesy of FORD MOTOR CO.

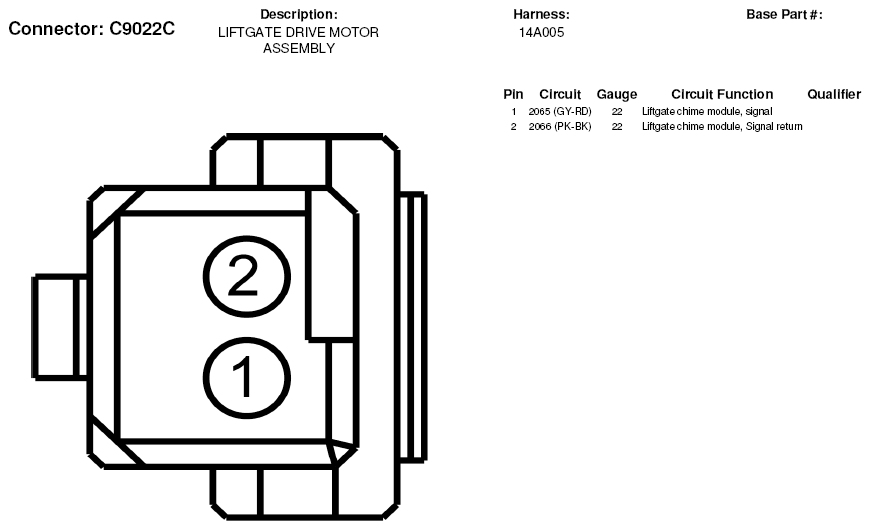

Fig 3: Liftgate Drive Motor Assembly Connector End View (C9022C)

Courtesy of FORD MOTOR CO.
