Mass Air Flow Sensor Connector

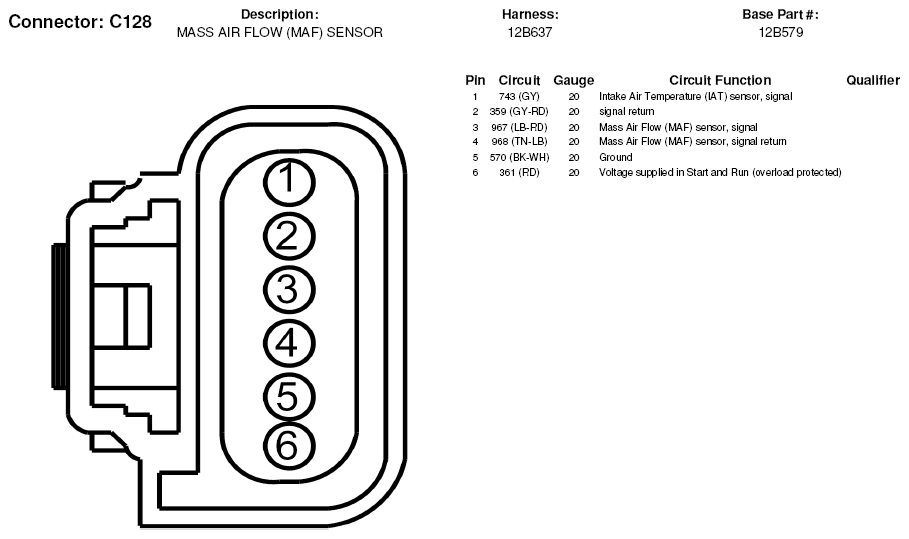

Fig 1: Mass Air Flow Sensor Connector End View (C128)
G05181451Courtesy of FORD MOTOR CO.
