Module Power Sliding Door Connector

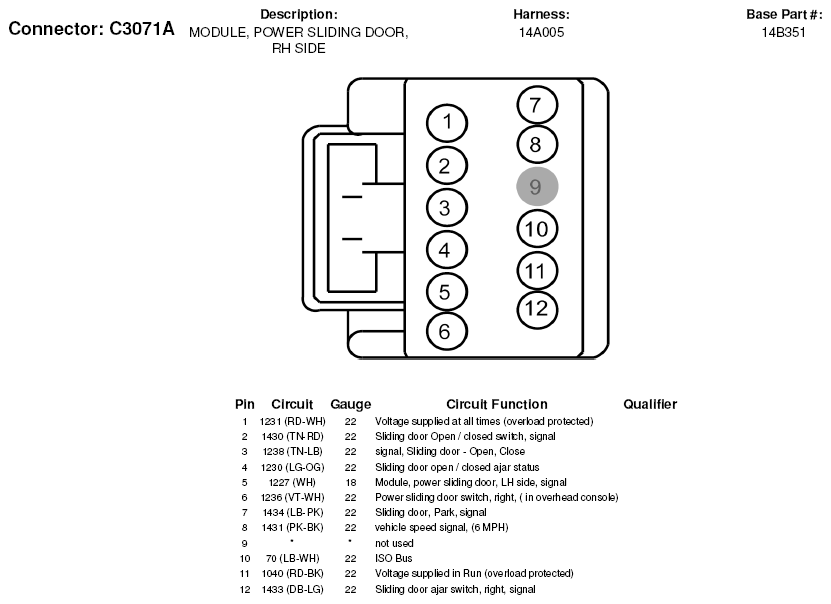

Fig 1: Module Power Sliding Door Connector End View (C3071A)

Courtesy of FORD MOTOR CO.

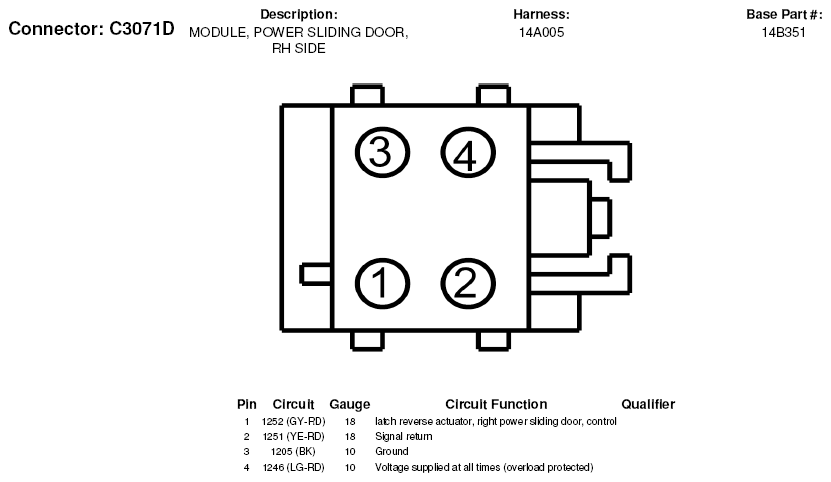

Fig 2: Module Power Sliding Door Connector End View (C3071D)

Courtesy of FORD MOTOR CO.

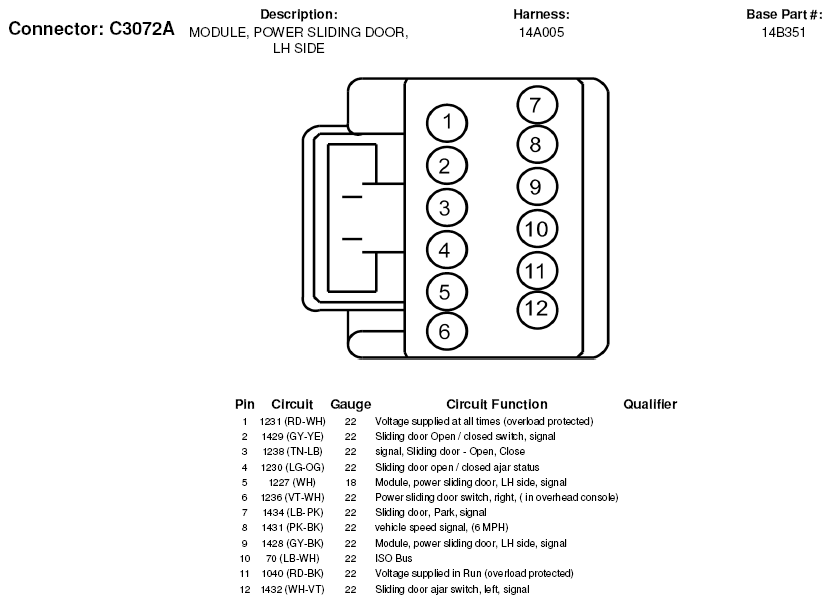

Fig 3: Module Power Sliding Door Connector End View (C3072A)

Courtesy of FORD MOTOR CO.

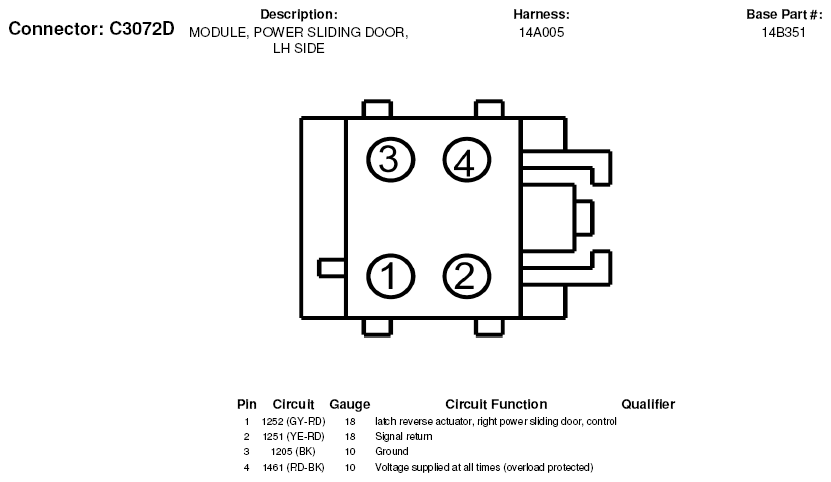

Fig 4: Module Power Sliding Door Connector End View (C3072D)

Courtesy of FORD MOTOR CO.
