Power Liftgate Open/Close Switch Connector
Power Liftgate Open/Close Switch Connector

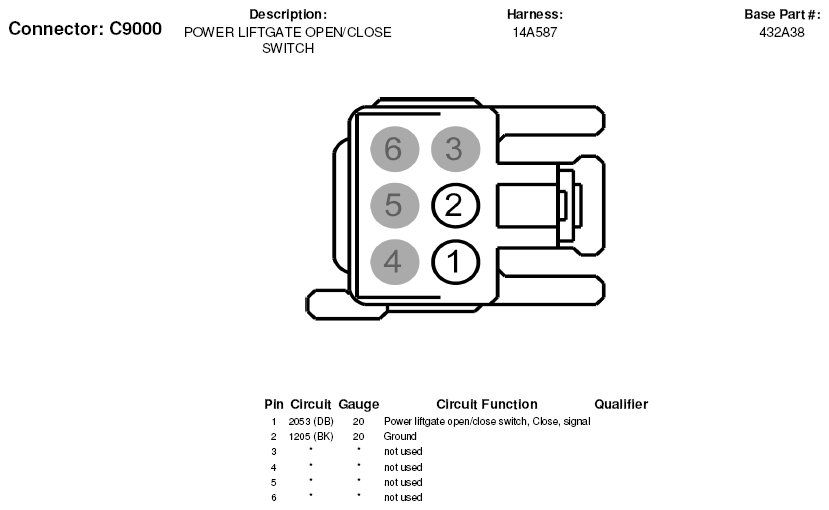

Fig 1: Power Liftgate Open/Close Switch Connector End View (C9000)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
