Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector Views
›
Power Point Connectors
Power Point Connectors

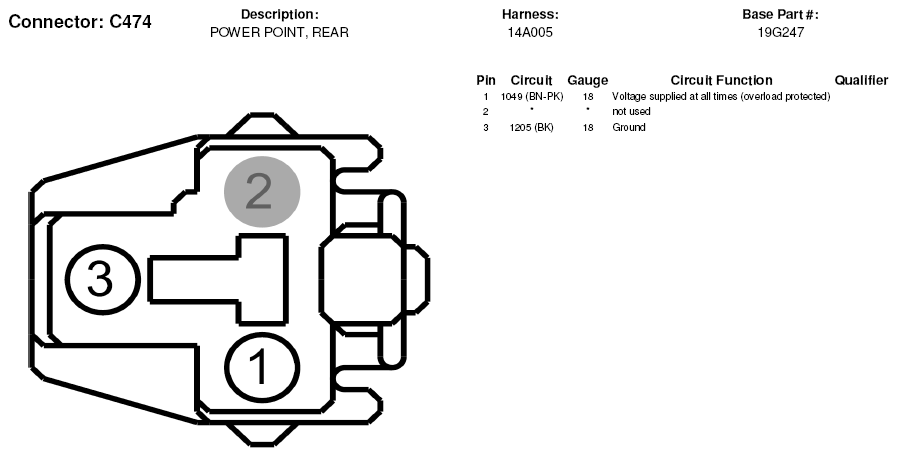

Fig 1: Power Point Connector End View (C474)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
