Power Quarter Window Switch Connector

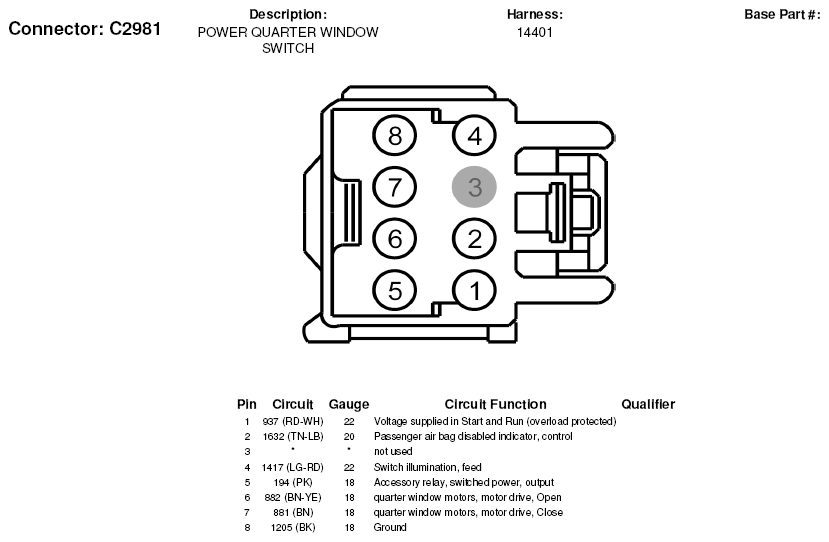

Fig 1: Power Quarter Window Switch Connector End View (C2981)
G05181701Courtesy of FORD MOTOR CO.
