Power Window Switch Connector

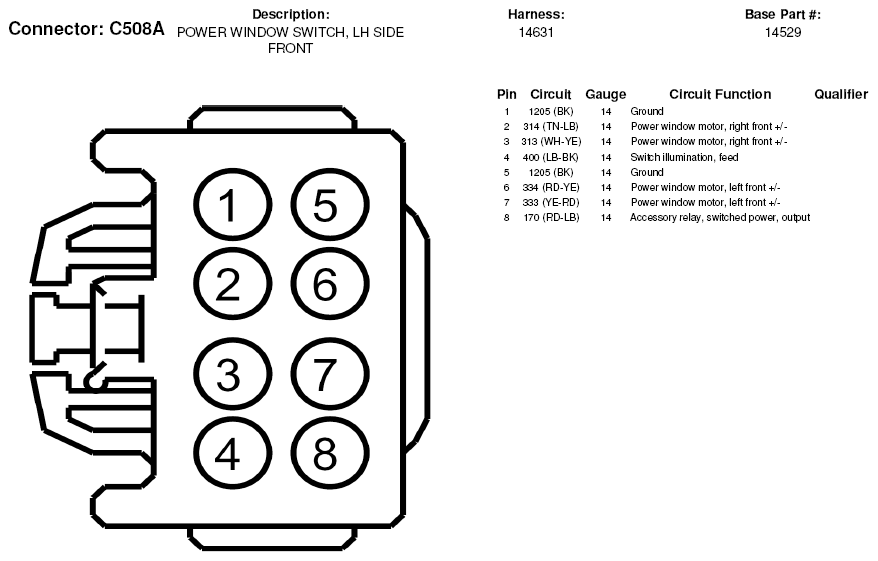

Fig 1: Power Window Switch Connector End View (C508A)
G05181589Courtesy of FORD MOTOR CO.

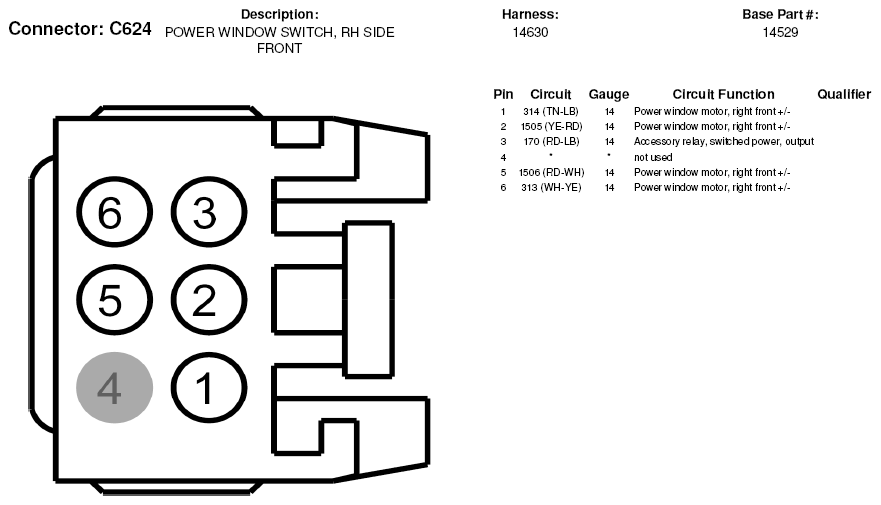

Fig 2: Power Window Switch Connector End View (C624)
G05181606Courtesy of FORD MOTOR CO.
