Safety Canopy Module Connector

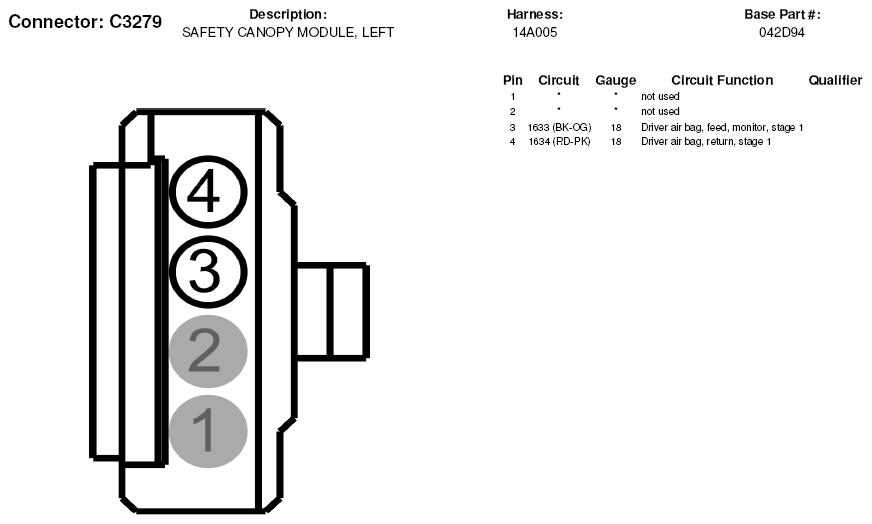

Fig 1: Safety Canopy Module Connector End View (C3279)
G05181733Courtesy of FORD MOTOR CO.

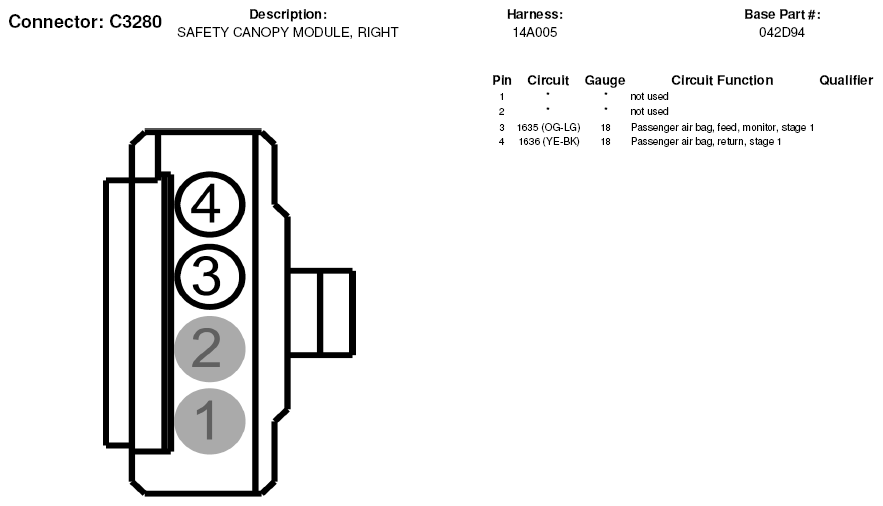

Fig 2: Safety Canopy Module Connector End View (C3280)
G05181734Courtesy of FORD MOTOR CO.
