Seat Position Sensor Connector

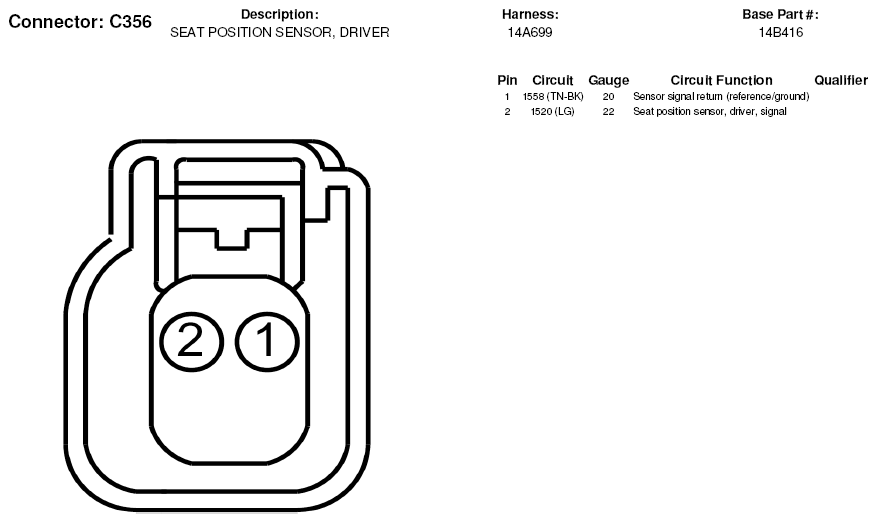

Fig 1: Seat Position Sensor Connector End View (C356)
G05181550Courtesy of FORD MOTOR CO.
