Stability Control Sensor Connector
Stability Control Sensor Connector

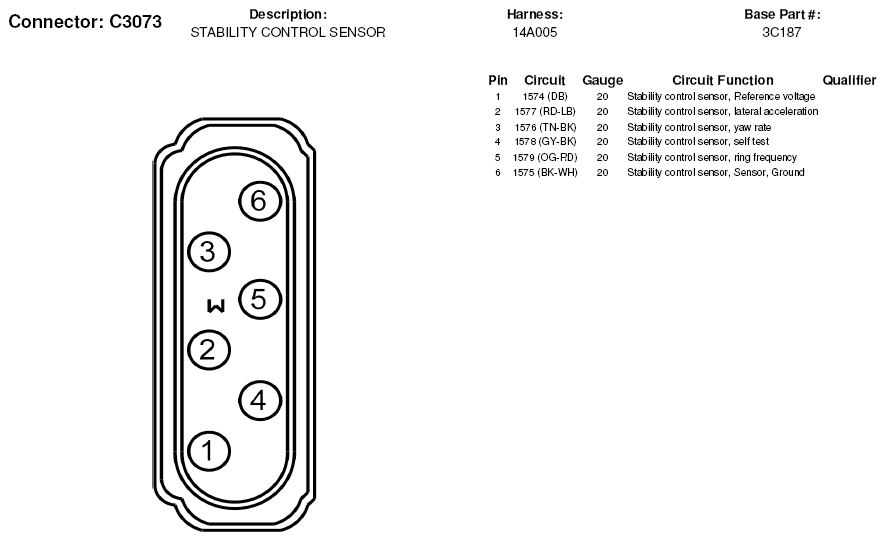

Fig 1: Stability Control Sensor Connector End View (C3073)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
