Steering Position Sensor Connector

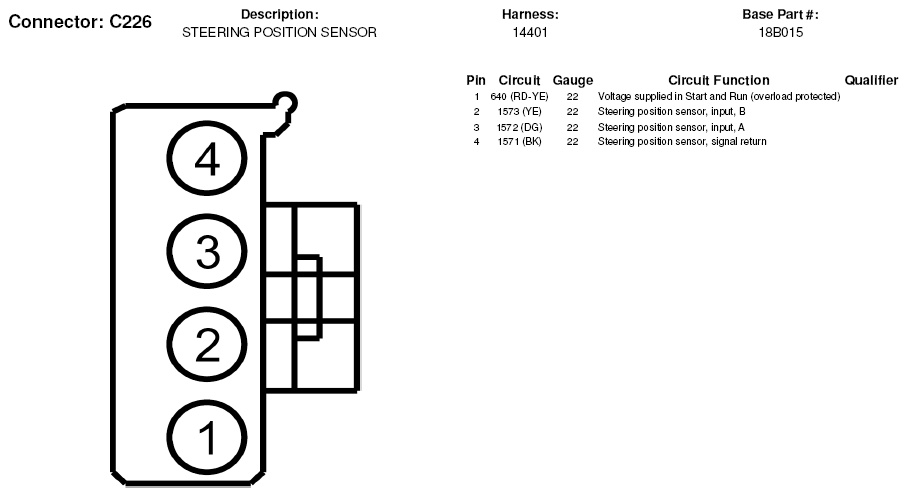

Fig 1: Steering Position Sensor Connector End View (C226)
G05181507Courtesy of FORD MOTOR CO.
