Antenna Isolator Module: Notes

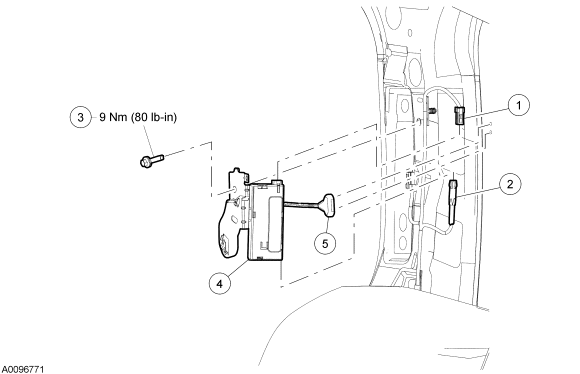

Fig 1: Exploded View Of Antenna Isolator Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A005	Electrical connector
2	14A005	Antenna lead-in cable connector
3	W705572	Antenna isolator module bolt
4	150200	Antenna isolator module
5	-	Antenna isolator module connector (part of 150200)
