Floor Console: Notes

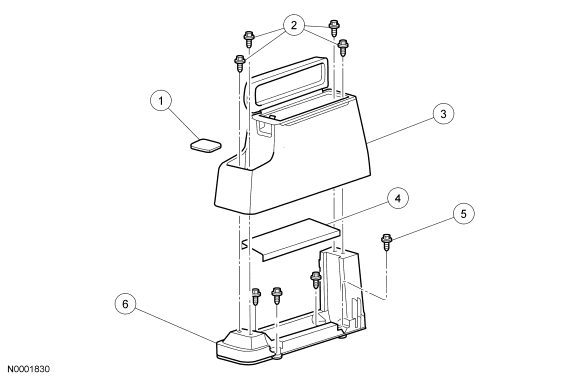

Fig 1: Exploded View Of Floor Console

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	046B76	Floor console mat
2	N807729	Floor console screws (4 required)
3	045A06	Floor console bin
4	045M24	Floor console gasket/mat (part of 045A15)
5	W708311	Floor console bracket bolt (4 required)
6	045W34	Floor console bracket assembly
