Instrument Panel - Exploded View

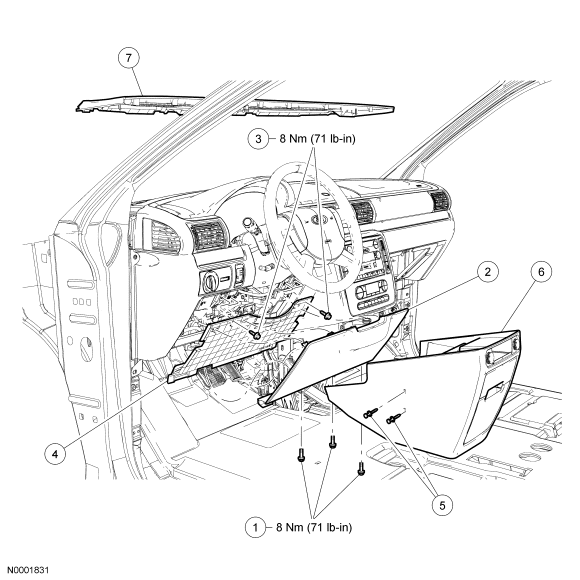

Fig 1: Exploded View Of Instrument Panel - (1 Of 4) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807316-S36	Instrument panel steering column opening cover bolts (3 required)
2	044F08	Instrument panel steering column opening cover
3	N807316-S36	Instrument panel steering column reinforcement bolts (2 required)
4	-	Instrument panel steering column reinforcement (part of 044F08)
5	N804837	Instrument panel console pin-type retainers (2 required)
6	13548	Instrument panel console
7	044A90	Defroster grille

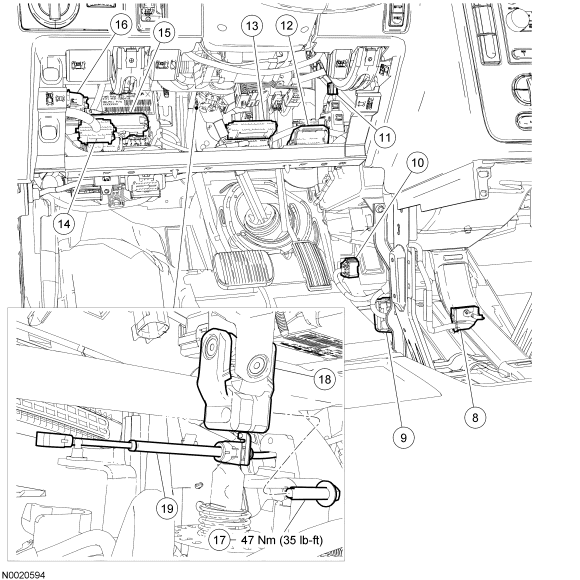

Fig 2: Exploded View Of Instrument Panel - (2 Of 4) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
8	-	Electrical connector (part of 14401)
9	-	Restraint control module electrical connector (part of 14401)
10	-	Electrical connector (part of 14401)
11	-	Electrical connector (part of 14401)
12	-	Electrical connector (part of 14401)
13	-	Electrical connector (part of 14401)
14	-	Electrical connector (part of 14401)
15	-	Smart junction box electrical connector (part of 14401)
16	-	Smart junction box electrical connector (part of 14401)
17	N808349-S100	Intermediate shaft pinch bolt
18	3C662	Intermediate shaft
19	7E395	Transmission shift cable

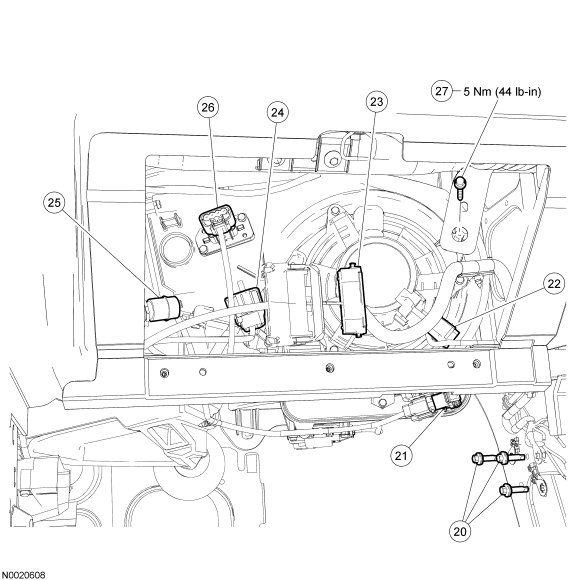

Fig 3: Exploded View Of Instrument Panel - (3 Of 4) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
20	-	Ground bolts
21	-	Climate control electrical connector (part of 14401)
22	-	Blower motor electrical connector (part of 14401)
23	-	Main electrical connector (part of 14401)
24	-	Heater servo electrical connector (part of 14401) (if equipped)
25	-	Electronic air temperature control air tube (if equipped)
26	-	Thermal resistor electrical connector (part of 14401) (if equipped)
27	-	Instrument panel reinforcement bolt (RH)

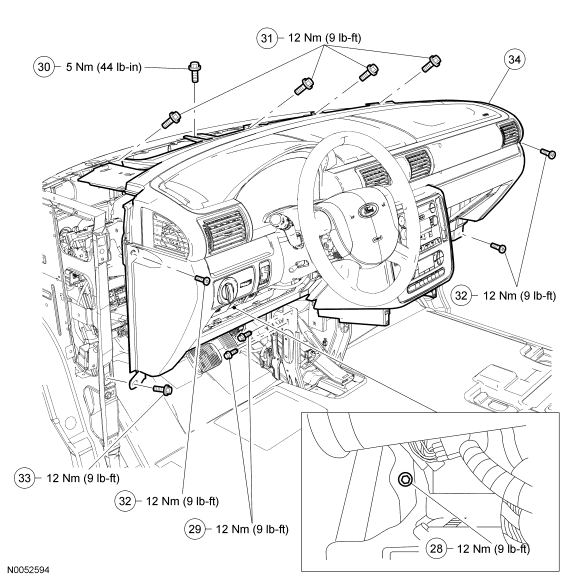

Fig 4: Exploded View Of Instrument Panel - (4 Of 4) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
28	W707108-S426	Instrument panel reinforcement bolt (LH)
29	N805375-S36	Instrument panel center support bolts (4 required)
30	W505424-S309	Instrument panel cowl reinforcement bolt
31	W709604-S37	Instrument panel cowl top bolts (4 required)
32	N811522-S424	Instrument panel cowl side bolts (3 required)
33	W707108-S426	Instrument panel cowl side bolt
34	04304	Instrument panel
