Fuel Rail and Fuel Injector - Exploded View

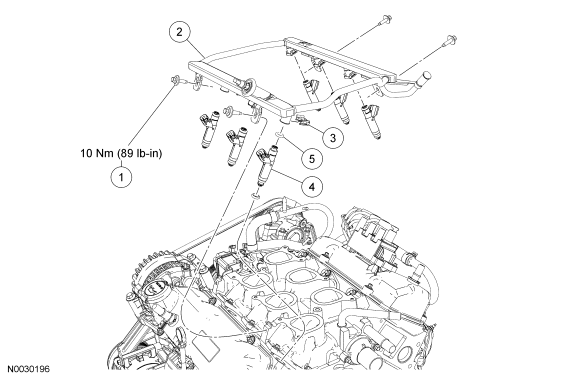

Fig 1: Exploded View Of Fuel Rail & Fuel Injector With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701775-S	Fuel rail bolt (4 required)
2	9F792	Fuel rail
3	9C995	Fuel injector clip (6 required)
4	9F593	Fuel injector (6 required)
5	-	Fuel injector O-ring seal (12 required)

1. For additional information, refer to the following procedures.
