Cylinder Head Temperature (CHT) Sensor: Notes

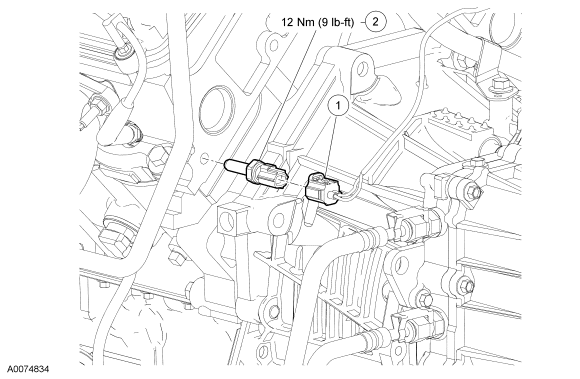

Fig 1: Exploded View Of Cylinder Head Temperature CHT Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Cylinder head temperature (CHT) sensor electrical connector (part of 12B637)
2	6G004	CHT sensor
