Idle Air Control (IAC) Valve: Notes

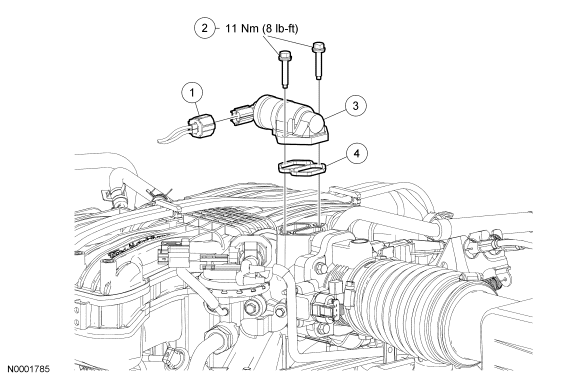

Fig 1: Exploded View Of Idle Air Control IAC Valve With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Idle air control (IAC) valve electrical connector (part of 12B637)
2	W701669-S	IAC valve bolts (2 required)
3	9F715	IAC valve
4	9F670	IAC valve gasket
