Mass Air Flow (MAF) Sensor: Notes

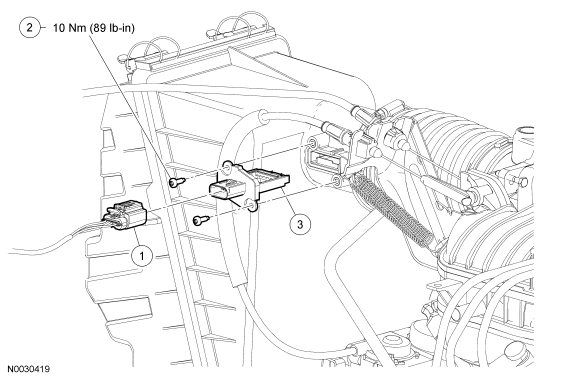

Fig 1: Exploded View Of Mass Air Flow MAF Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Mass air flow (MAF) sensor electrical connector (part of 12B637)
2	W709287-S	MAF sensor screw (2 required)
3	12B605	MAF sensor
