Throttle Position (TP) Sensor: Notes

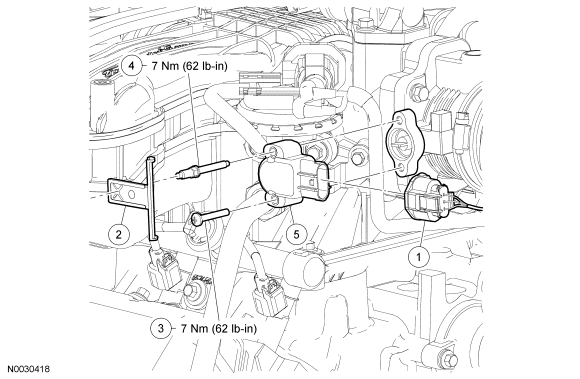

Fig 1: Exploded View Of Throttle Position TP Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Throttle position (TP) sensor electrical connector (part of 12B637)
2	13A506	Harness retainer (part of 12B637)
3	N603257-S	TP sensor bolt
4	N709705-S	TP sensor stud bolt
5	9B989	TP sensor
