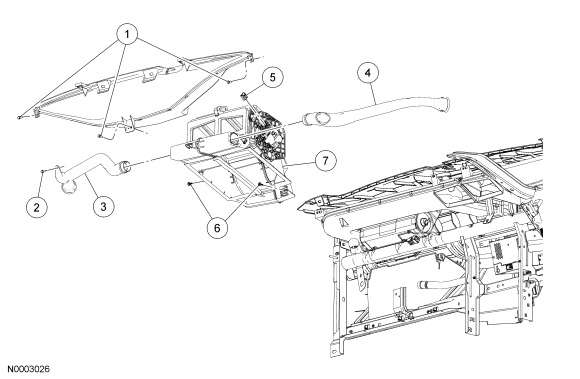

| 1 |
W701696 |
Defroster duct screws (3 required) |
| 2 |
N807011 |
RH demister duct screw |
| 3 |
19E630 |
RH demister duct |
| 4 |
19E630 |
LH demister duct |
| 5 |
14401 |
Defrost/panel/floor mode door actuator electrical connector |
| 6 |
N807011 |
Plenum chamber screws (3 required) |
| 7 |
18471 |
Plenum chamber |
