Brake Pressure Switch Connector
Brake Pressure Switch Connector

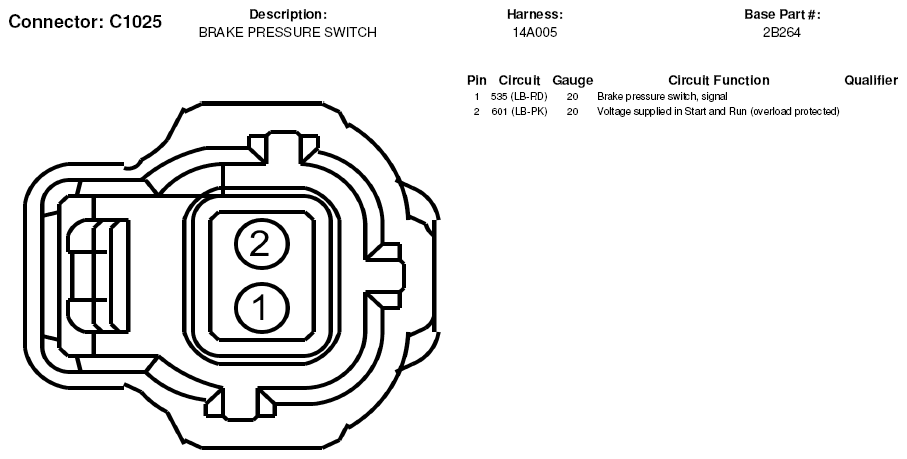

Fig 1: Brake Pressure Switch Connector End View (C1025)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
