Climate Controlled Seat Backrest Connector

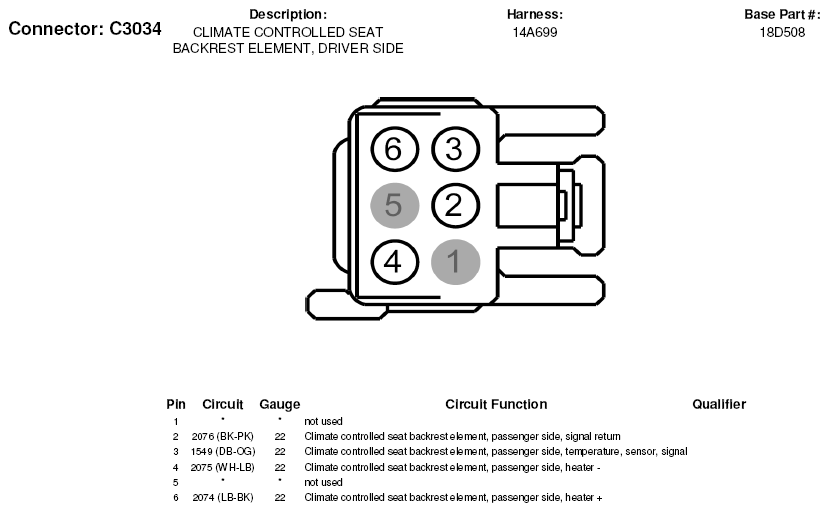

Fig 1: Climate Controlled Seat Backrest Connector End View (C3034)
G05181710Courtesy of FORD MOTOR CO.

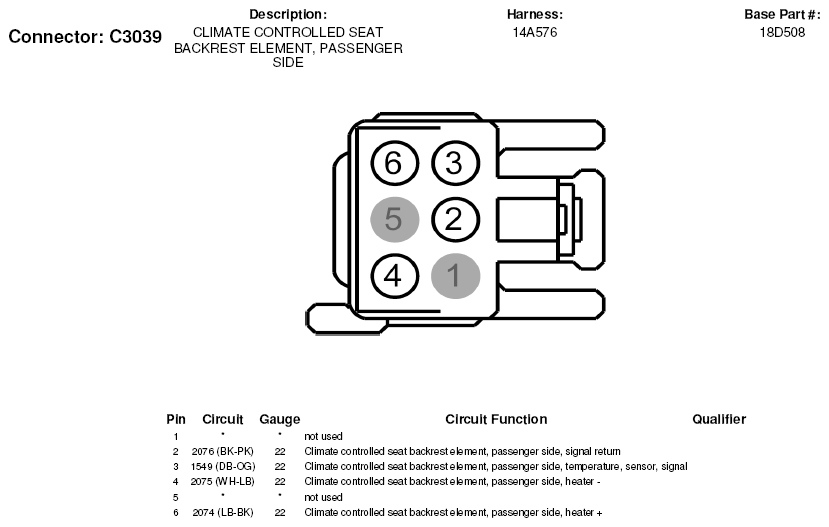

Fig 2: Climate Controlled Seat Backrest Connector End View (C3039)
G05181715Courtesy of FORD MOTOR CO.
