Front Blower Motor Relay Connector

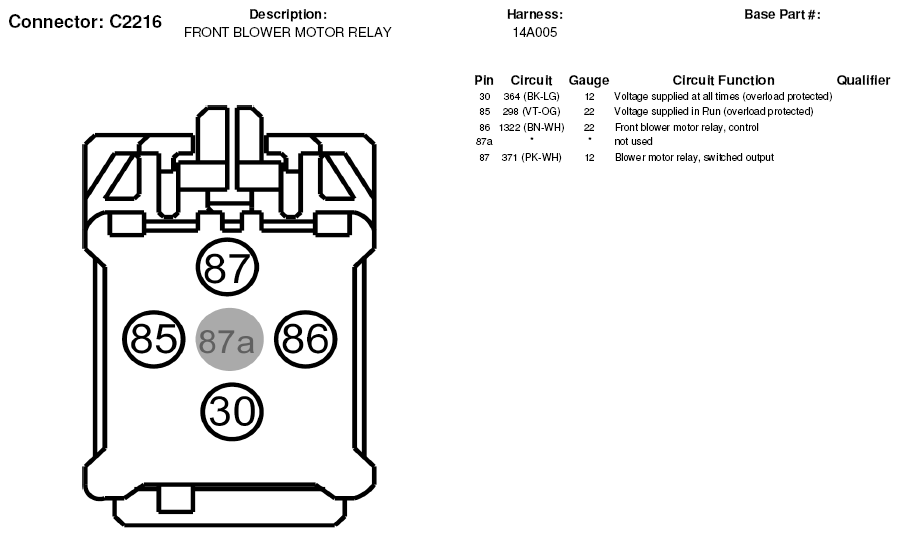

Fig 1: Front Blower Motor Relay Connector End View (C2216)
G05181686Courtesy of FORD MOTOR CO.
