Front Blower Motor Resistor Connector
Front Blower Motor Resistor Connector

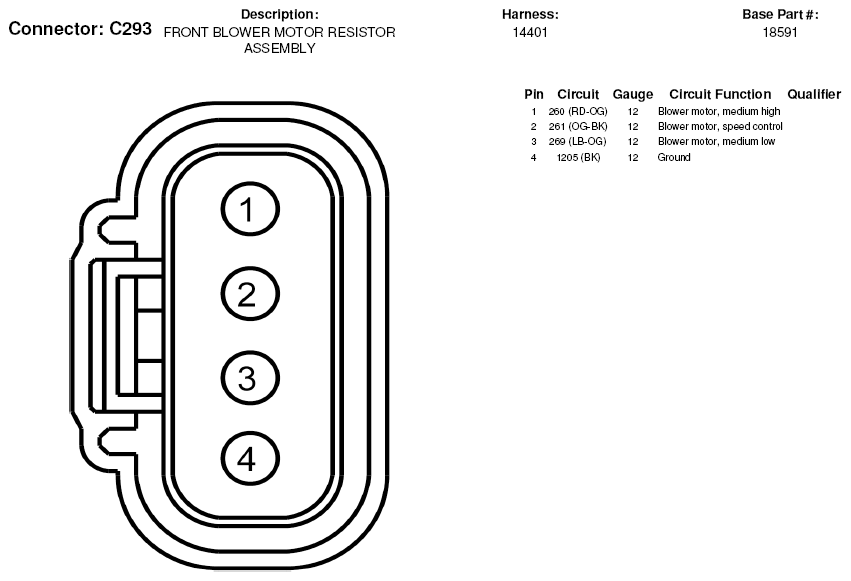

Fig 1: Front Blower Motor Resistor Connector End View (C293)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
