Fuel Door Interlock Switch Connector
Fuel Door Interlock Switch Connector

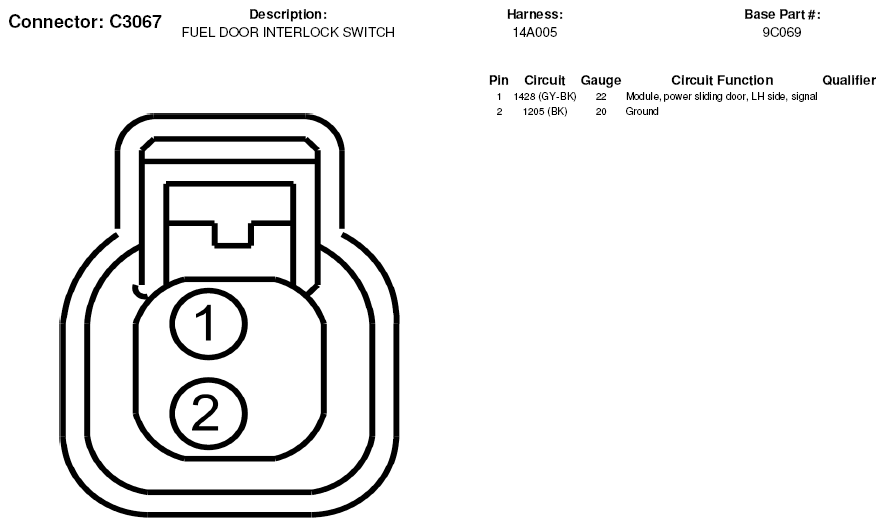

Fig 1: Fuel Door Interlock Switch Connector End View (C3067)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
