Parking Aid Sensor Connector

Fig 1: Parking Aid Sensor Connector End View (C1428)

Courtesy of FORD MOTOR CO.

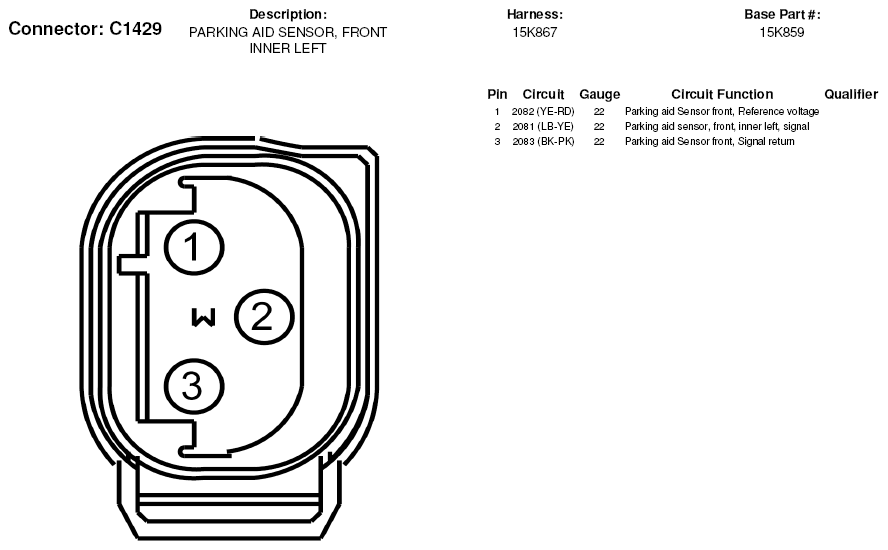

Fig 2: Parking Aid Sensor Connector End View (C1429)

Courtesy of FORD MOTOR CO.

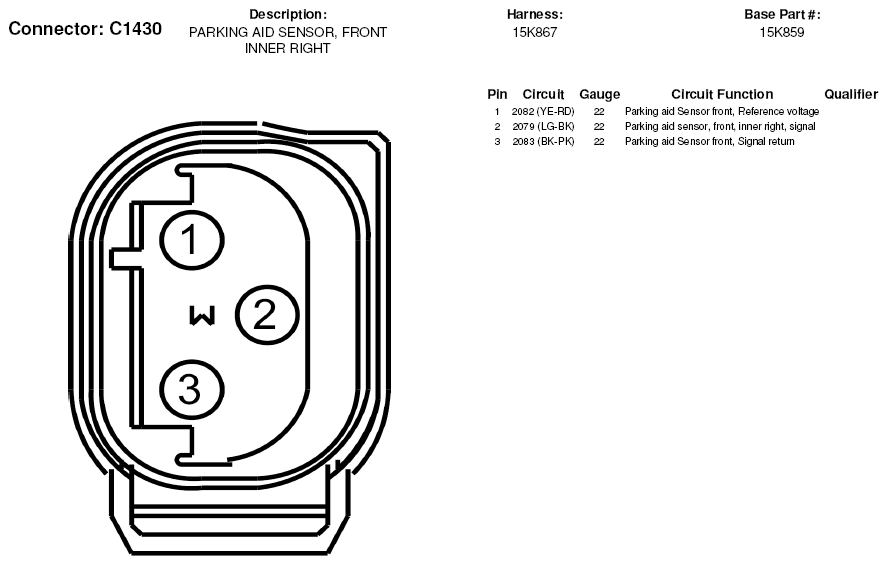

Fig 3: Parking Aid Sensor Connector End View (C1430)

Courtesy of FORD MOTOR CO.

Fig 4: Parking Aid Sensor Connector End View (C1431)

Courtesy of FORD MOTOR CO.

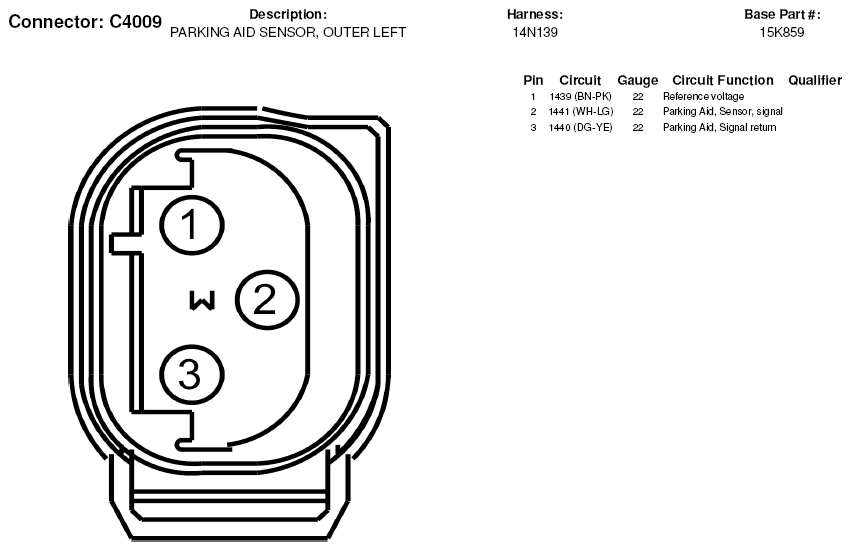

Fig 5: Parking Aid Sensor Connector End View (C4009)

Courtesy of FORD MOTOR CO.

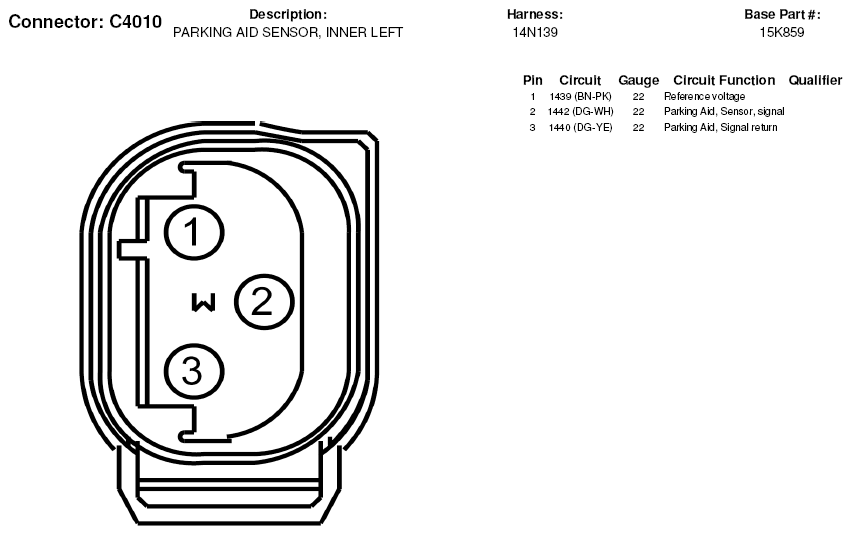

Fig 6: Parking Aid Sensor Connector End View (C4010)

Courtesy of FORD MOTOR CO.

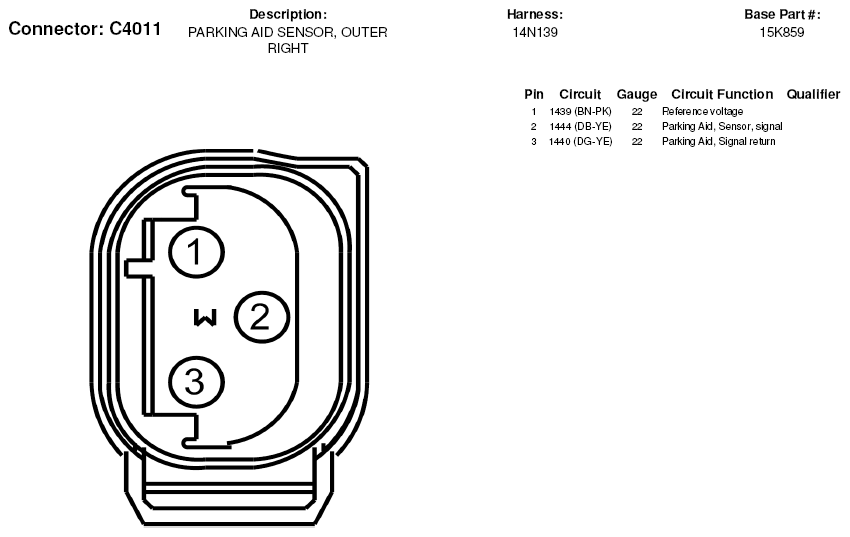

Fig 7: Parking Aid Sensor Connector End View (C4011)

Courtesy of FORD MOTOR CO.

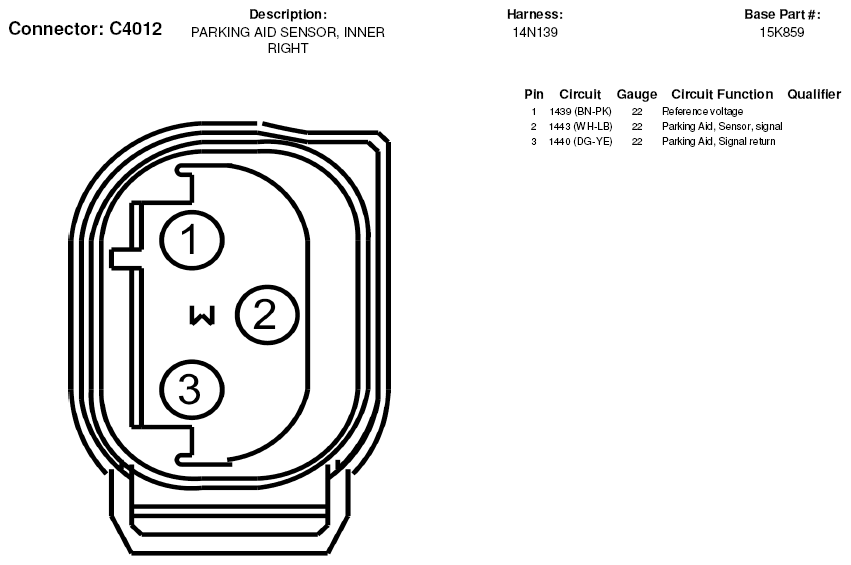

Fig 8: Parking Aid Sensor Connector End View (C4012)

Courtesy of FORD MOTOR CO.
